NEMA Standard CodeThe distinct American National Electrical Manufacturers Association (NEMA) identifier defining terminal arrangements.
Current Rating (Amps)The safe continuous electrical current load limit (e.g., 15A, 20A, 30A, 50A) supported by the connector pinout.
Nominal Voltage (V)Specifies standard household limits (125V), high-power lines (250V), or dual-voltage split-phases (125/250V).
Locking ClassDifferentiates standard straight-blade push designs from industrial twist-locking (L series) configurations.
Practical Operational Examples
Standard Home Outlets
Typical North American bedroom wall outlets utilize the NEMA 5-15 grounded configuration, safely supporting up to 15 Amps at 125 Volts.
Level 2 EV Charging
Modern residential EV chargers and RV parks employ heavy-duty 4-wire NEMA 14-50 grounded receptacles to supply up to 50 Amps at 250 Volts.
Modern Laundry Dryers
Grounded electric clothes dryers require 30A NEMA 14-30 outlets with separate neutral and ground pathways to meet modern NEC standards.
Industrial Generators
Portable generators and marine docks use twist-lock NEMA L5-30 or L6-30 outlets to prevent power cables from being accidentally pulled out.
Formulas & Mathematical Logic
NEMA naming conventions follow a structured, logical nomenclature system defined by ANSI/NEMA WD 6 guidelines.
Straight vs locking: Code prefix 'L' indicates Twist-Locking; no prefix indicates Straight Blade.
Voltage & Phase Class: First digit represents voltage class (1 = 125V ungrounded, 5 = 125V grounded, 6 = 250V, 14 = 125/250V split-phase).
Current Capacity: Second digit indicates max continuous current capacity in Amperes (e.g. 15, 20, 30, 50).
Using this standardized nomenclature, a NEMA L6-30 is an industrial twist-locking (L) 250V (6) connector rated safely for up to 30 Amps (30).
How to Use This Calculator
Select the desired NEMA connector configuration code from the dropdown selection list.
Click the orange Calculate button to pull the standard mechanical database values.
Check the resulting cards to find nominal ratings, terminal pins, and locking styles.

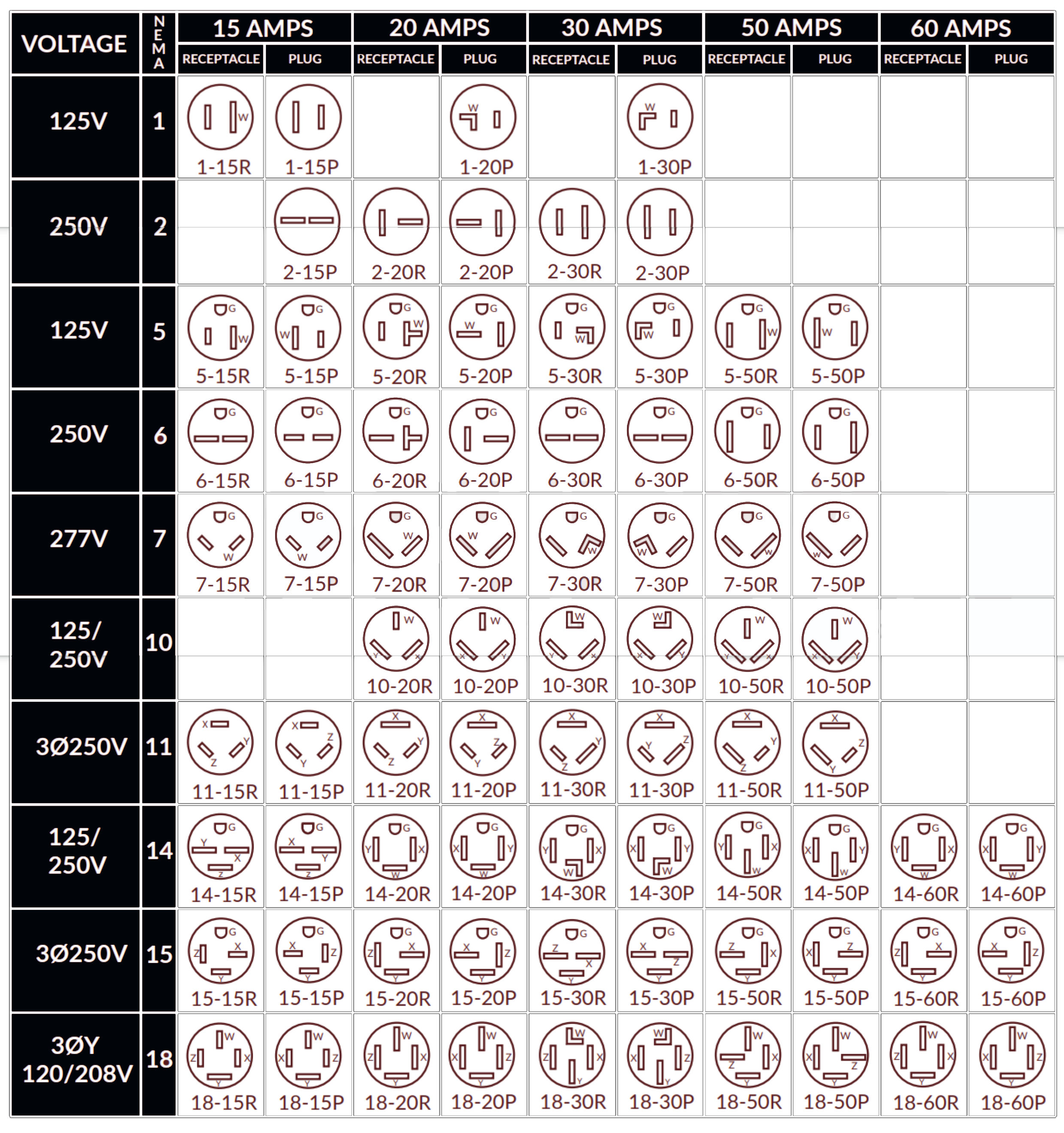

Verify the physical arrangement by examining the NEMA reference chart image below.
Use the typical application metrics to select the safe connector for your home or workshop load.
About This Calculator
Instantly identify safe current ratings and terminal pinouts of NEMA connectors.
The CalcBoy NEMA Plug and Receptacle Configuration Tool decodes standard power socket designs across North America.
Sizing electrical plug and receptacle connections safely is a critical step in residential planning, industrial machinery setups, and high-power appliance installations. NEMA (National Electrical Manufacturers Association) connectors are standard electrical plugs and receptacles used in North America, operating under voltage configurations ranging from 125V up to 600V. Sizing these connectors correctly is essential to protect equipment, prevent early wire decay, and safeguard users from shock hazards.
A common engineering and trade challenge is verifying the correct wiring configurations of standard high-amperage outlets. For instance, legacy dryer outlets (NEMA 10-30) lacked a dedicated ground path, which could carry dangerous fault currents if an internal wire shorted. In 1996, the National Electrical Code (NEC) mandated a transition to 4-wire grounded configurations (NEMA 14-30 for dryers, NEMA 14-50 for stove ranges), ensuring safer grounding paths.
This dynamic tool simplifies this process. Users can choose any standard NEMA code to instantly verify safe operational limits, terminal wiring details, locking types, and typical consumer applications, avoiding manual lookup errors.
Main BenefitEliminates manual checks across dry electrical engineering charts.
Scope CoveredCovers standard household outlets, heavy range feeds, RV campground plugs, and industrial twist-locks.
Units DisplayedOutputs maximum current ratings in Amperes (A) and nominal voltages in Volts (V).
Safety StandardAligned with ANSI/NEMA WD 6 and National Electrical Code (NEC) guidelines.
Note: Standard receptacle slots feature minor shape differences (such as T-shaped slots on NEMA 5-20) to prevent plugging low-current appliances into higher-current breakers.
Frequently Asked Questions
1. What is the difference between a NEMA 5-15 and 5-20 outlet?
Both are rated for 125V, but a NEMA 5-15 safely handles up to 15 Amps and is the standard residential outlet. A NEMA 5-20 handles up to 20 Amps and features a T-shaped neutral slot, allowing high-draw commercial appliances to connect safely.
2. Can I plug a standard 15A computer plug into a 20A outlet?
Yes. A standard 15A plug (NEMA 5-15P) can safely plug into a 20A receptacle (NEMA 5-20R) because the 20A outlet is designed backward-compatible with 15A plugs.
3. Why is NEMA 14-50 so popular for Electric Vehicles (EVs)?
NEMA 14-50 provides a split-phase 125/250V supply and handles up to 50 Amps. This high power rating (up to 9.6 kW) supports rapid Level 2 home charging, making it the preferred standard for EV owners.
4. Why are NEMA 10-30 outlets considered legacy?
NEMA 10-30 is a 3-wire ungrounded outlet formerly used for electric dryers. In 1996, the NEC banned them for new installations, requiring 4-wire grounded NEMA 14-30 outlets to ensure user safety.
5. What does the 'L' prefix in NEMA codes mean?
The 'L' prefix stands for Locking. These connectors have curved metal blades that lock securely into the receptacle when twisted, preventing accidental power disconnections in industrial settings.
6. Can I plug a 240V appliance into a 125V outlet?
No. NEMA configurations are mechanically designed to make this physically impossible, preventing users from connecting mismatched voltage lines and destroying delicate appliance circuits.
