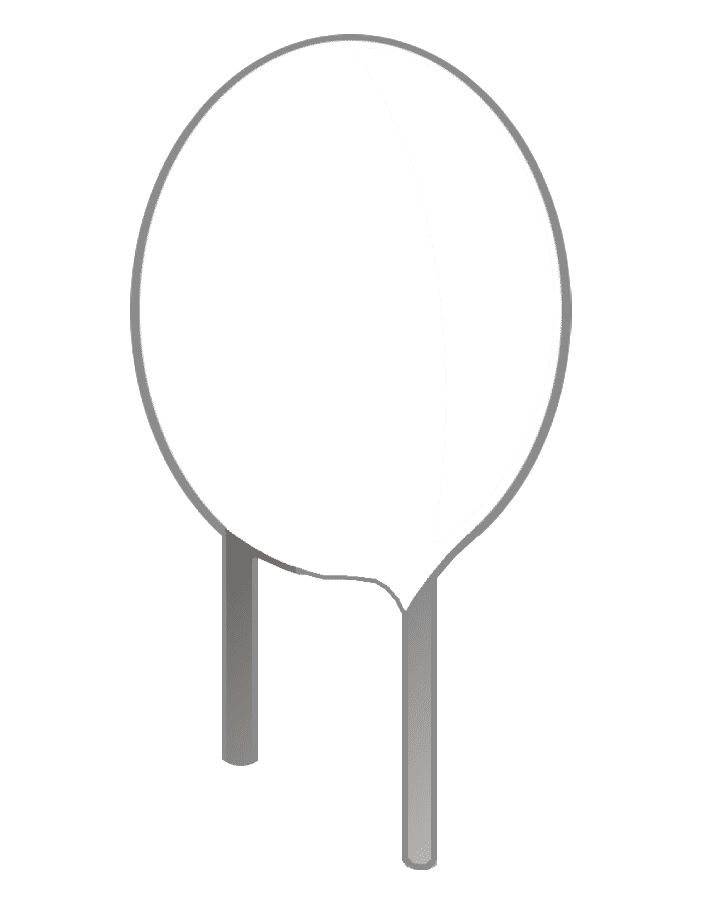

Tantalum Capacitor
-
1st Digit
2nd Digit
Multiplier
Voltage
Tolerance
DETAILED SPECIFICATIONS
Base Capacitance
-
Operational Limits
-
Working Voltage
-
Tolerance Rating
-

Input Parameters Specification

First / Second DigitsBase numerical significant figures representing the absolute capacitance base integer.
Capacitance MultiplierCalculates the exponential multiplier factor (such as base x10 or x100 pF) to find total capacitance.
Working Voltage RatingIndicates the maximum safe DC voltage that the polarized tantalum dielectric layer can sustain.
Tolerance RatingDetails the allowed operational manufacturing variance boundaries of the component under thermal stress.

Practical Operational Examples

4.7µF Decoupling Capacitor

Commonly colored: Yellow (4), Violet (7), Green (Multiplier x5), Blue (20V), ±10% (White). Frequently utilized for high-stability rail smoothing.

10µF 16V Tantalum Bead

Decodes via Brown (1), Black (0), Blue (Multiplier x6), Green (16V). Excellent choice for RF bypass networks.

Polarized Caution Indicator

Unlike standard ceramic discs, solid Tantalum capacitors are highly polarized components. Connecting them backward can result in instantaneous component breakdown.

Low ESR Debugging Node

Tantalum components offer superior equivalent series resistance (ESR) characteristics compared to electrolytic variants.

Diagrams & Theory

Solid tantalum capacitors feature standard color bands or colored dots to denote critical electrical parameters. Due to their drop-like resin "bead" shapes, printing text on their curved surface can easily lead to identification errors. Color bands allow quick optical checkups during assembly or reverse-engineering procedures.

Formulas & Mathematical Logic

Capacitance Value (pF) = (Digit 1 × 10 + Digit 2) × 10multiplier_index
Operational Min Bound = Value - (Value × Tolerance / 100)
Operational Max Bound = Value + (Value × Tolerance / 100)

Step-by-Step Example

Example: 5-Band Tantalum bead - Yellow, Violet, Black, Blue, Green
Step 1: Write down significant figures: Yellow = 4, Violet = 7 (47).
Step 2: Apply the multiplier (Black): 47 × 100 pF = 4.7 µF.
Step 3: Read Voltage (Blue) = 20 V.
Step 4: Check Tolerance (Green) = ±5%. Limits range from 4.46 µF to 4.93 µF.

How to Use This Calculator

Inspect the tantalum drop bead capacitor and identify the top, middle, and bottom band colors.
Select corresponding colors on the dynamic picker triggers.
Observe the background color layers update beneath the overlay slits in real-time.
Instantly read the decoded capacitance range, tolerance, and maximum operating voltage.

Frequently Asked Questions

1. Are tantalum bead capacitors polarized?

Yes. Tantalum capacitors are highly polarized. Connecting them incorrectly can cause immediate failure or physical damage to the surrounding circuit components.

2. What standard unit is used for the base calculation?

Tantalum capacitor color codes use picofarads (pF) as their base calculation unit, which are then scaled into nanofarads (nF) or microfarads (µF) for readability.

3. How can I identify the positive terminal on a physical tantalum bead?

Normally, a small "+" symbol or a vertical stripe printed on the resin body identifies the positive terminal (anode lead wire).
