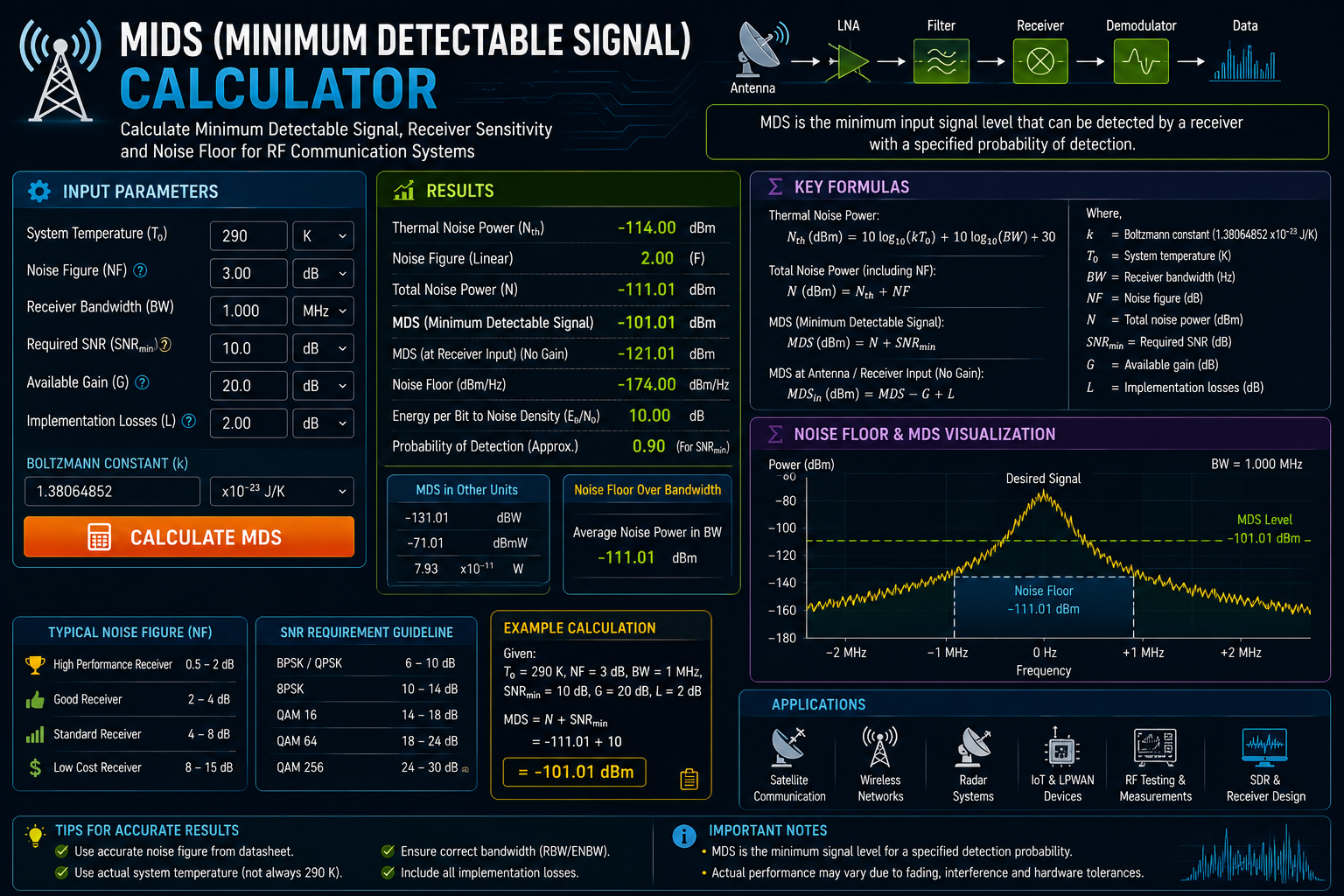

🔬 1. Introduction to RF Receiver Sensitivity
Minimum Detectable Signal (MDS) defines the ultimate physical sensitivity limit of a radio frequency (RF) receiver system. While static DC supply voltages are calculated using our Ohm's Law Calculator or analyzed for indicator current draw with our LED Resistor Calculator, detecting extremely weak microwave signals requires pulling information out of background thermal noise.
In high-sensitivity radar, satellite communication ground stations, and cellular transceivers, MDS establishes the smallest detectable power level at the antenna terminals. When designing active front-end low-noise amplifiers (LNAs) or downconverter mixers, engineers evaluate gain and noise stability using our FET Buffer Amplifier Calculator alongside our Inverting Op-Amp Resistor Calculator.
Battery-powered field receivers must balance low noise front-end power consumption against maximum operational coverage range. Designers evaluate battery discharge capacity using our Battery Runtime Calculator and regulate supply rails using our Adjustable Voltage Regulator Calculator. Precise MDS modeling determines total link budget range limits accurately.
⚙️ 2. Thermal Noise Floor Physics (-174 dBm/Hz)
At any temperature above absolute zero (0 Kelvin), random thermal motion of electrons in conductive components generates a white noise voltage spectral density known as Johnson-Nyquist noise (P_noise = k × T × BW). At standard room temperature (290 K), thermal noise power density equals exactly -174 dBm per Hertz of bandwidth.
Selecting low-loss coaxial feedline cables prevents input signal attenuation before reaching the LNA front-end. Engineers calculate conductor sizing using our Wire Size Calculator and verify line drop using our Electrical Wire & Cable Voltage Drop Calculator.
📐 3. MDS Calculation Formula & Parameters
Minimum Detectable Signal (MDS, in dBm) combines thermal noise density, receiver bandwidth factor, component noise figure, and required signal-to-noise ratio:
When measuring pure thermal noise floor without signal demodulation requirements (SNR_min = 0 dB), the equation simplifies to the equivalent noise floor (N_floor):
📊 4. Receiver Bandwidth & Sensitivity Table
The table below shows ideal thermal noise floors and practical MDS sensitivity levels across typical receiver channel bandwidths assuming NF = 3.0 dB and SNR_min = 10.0 dB:
| Application / Technology |
Receiver Bandwidth (BW) |
10 log10(BW) Factor |
Thermal Noise Floor (NF=0) |
Practical MDS (NF=3dB, SNR=10dB) |
| CW Radar / Morse Code |
100 Hz |
+20.0 dB |
:-154.0 dBm
-141.0 dBm |
| FM Voice Communications |
12.5 kHz |
+41.0 dB |
-133.0 dBm |
-120.0 dBm |
| LoRa IoT (SF12) |
125.0 kHz |
+51.0 dB |
-123.0 dBm |
-110.0 dBm |
| WCDMA / 3G Cellular |
3.84 MHz |
+65.8 dB |
-108.2 dBm |
-95.2 dBm |
| 4G LTE / 5G NR |
20.0 MHz |
+73.0 dB |
-101.0 dBm |
-88.0 dBm |
⚡ 5. Noise Figure (NF) & Front-End LNA Optimization
Noise Figure (NF) expresses how much a receiver's internal active circuitry degrades the signal-to-noise ratio. According to Friis' Formula for Noise, the first Low Noise Amplifier (LNA) in the receiver chain dominates total system noise figure.
Engineers evaluate thermal dissipation in high-sensitivity receivers using our Heat Sink Thermal Resistance Calculator and decode package markings using our SMD Resistor Code Calculator.
⚡ Bandwidth vs Sensitivity Rule: Doubling receiver channel bandwidth increases total integrated thermal noise power by 3 dB, degrading MDS sensitivity by 3 dB! Always restrict receiver IF filter bandwidth to match signal spectrum strictly.
🔌 6. Spurious-Free Dynamic Range (SFDR) Limits
Spurious-Free Dynamic Range (SFDR) bounds the usable power range of an RF receiver between the lower threshold set by MDS and the upper threshold where 3rd-order intermodulation distortion products rise above the noise floor.
✏️ 7. Noise Floor & MDS Level Spectrum Diagram
Below is a custom RF spectrum graph illustrating the mean thermal noise floor level line (green), Minimum Detectable Signal MDS threshold line (red), and a weak signal pulse emerging above the noise floor (blue):
📝 8. Step-by-Step Practical Design Example
Goal: Calculate the Minimum Detectable Signal (MDS in dBm) for a 10 MHz LTE receiver with Noise Figure NF = 2.5 dB and minimum required demodulation SNR_min = 6.0 dB.
- Step 1: Calculate Bandwidth Factor (10 log10 BW)
10 × log10(10 × 10⁶ Hz) = 10 × 7.0 = +70.0 dB
- Step 2: Calculate Thermal Noise Floor (N_floor)
N_floor = -174 dBm/Hz + 70.0 dB + 2.5 dB NF = -101.5 dBm
- Step 3: Add Required SNR_min
MDS = -101.5 dBm + 6.0 dB = -95.5 dBm.
💻 9. Radar & Satellite Receiver Sensitivity Requirements
Deep-space satellite tracking terminals require ultra-low MDS sensitivity (-135 dBm) to lock onto weak signals transmitted across millions of kilometers. Engineers review hardware pinouts using our Arduino Board Pinout and our Raspberry Pi Pinout when interfacing digital receiver ICs.
Pulsed Radar Target Sensitivity
Pulsed Doppler radars use narrow matched filtering bandwidths to achieve MDS levels below -130 dBm, detecting tiny target radar cross-sections (RCS).
Cryogenic Front-End Amplifiers
Cooling satellite dish LNA front-ends to 15 Kelvin lowers thermal noise power density from -174 dBm/Hz to -187 dBm/Hz, boosting sensitivity by 13 dB.
🌡️ 10. Thermal Temperature Variation & Cryogenic Cooling
Because Johnson-Nyquist thermal noise scales directly with temperature in Kelvin (T), high operating temperatures in automotive engine bays degrade receiver MDS. Designers analyze microstrip trace impedance using our Microstrip Impedance Calculator and verify line losses with our PCB Trace Resistance Calculator.
💡 Thermal Sensitivity Rule: Operating an RF receiver at +85°C (358 K) increases the thermal noise floor by +1.0 dB compared to room temperature (290 K), degrading MDS sensitivity by 1 dB!
❓ 11. Frequently Asked Questions (10 Detailed Answers)
1. What is Minimum Detectable Signal (MDS)? +
MDS is the lowest input RF power level that a receiver can reliably distinguish above its internal thermal noise floor for a specified minimum SNR.
2. What is the primary MDS calculation formula? +
The primary formula is MDS (dBm) = -174 + 10 × log10(BW) + NF + SNR_min.
3. Where does -174 dBm/Hz come from? +
It represents room temperature (290 K) Johnson-Nyquist thermal noise power spectral density per Hertz of bandwidth.
4. How does receiver bandwidth (BW) affect MDS? +
Narrowing bandwidth reduces total integrated thermal noise power, improving receiver MDS sensitivity (more negative dBm value).
5. What is Noise Figure (NF) and how does it degrade MDS? +
Noise Figure measures noise added by active receiver components above thermal noise, degrading MDS sensitivity dB-for-dB.
6. What is the difference between MDS and Receiver Sensitivity? +
MDS is the absolute threshold where SNR_min is typically 0 dB. Sensitivity refers to input power required for a specific demodulation quality (e.g., 12 dB SINAD).
7. How does an LNA improve receiver MDS? +
A low-noise amplifier at the antenna front-end establishes a low system Noise Figure, suppressing downstream mixer noise.
8. What is Spurious-Free Dynamic Range (SFDR)? +
SFDR is the power range bounded at the lower end by MDS and at the upper end by 3rd-order intermodulation distortion products matching the noise floor.
9. How does temperature affect MDS? +
Higher temperatures increase molecular thermal agitation (k × T), raising the noise floor above -174 dBm/Hz and degrading sensitivity.
10. What are typical MDS values for radar and cellular receivers? +
Narrowband CW radars achieve MDS down to -130 dBm to -140 dBm, while wideband 20 MHz LTE cellular receivers operate around -95 dBm to -105 dBm.
