🔬 1. Introduction to Biological RF Exposure & SAR

Specific Absorption Rate (SAR) is the fundamental metric used by regulatory agencies worldwide to evaluate human exposure safety to radio frequency (RF) electromagnetic energy emitted by wireless mobile devices. While static DC circuit power is calculated using our Ohm's Law Calculator or analyzed for indicator current with our LED Resistor Calculator, high-frequency transmitters induce electric fields directly inside lossy biological tissues.

In mobile smartphones, 5G NR wearables, and medical telemetry devices, controlling near-field RF energy absorption prevents thermal tissue damage. When designing active RF power amplifier stages or antenna matching networks, engineers evaluate gain and impedance stability using our FET Buffer Amplifier Calculator alongside our Inverting Op-Amp Resistor Calculator.

Compact handheld devices must balance wireless transmit coverage against strict legal SAR limits before gaining commercial FCC or CE certification. Designers evaluate battery operating lifespan using our Battery Runtime Calculator and regulate RF supply rails using our Adjustable Voltage Regulator Calculator. Precise SAR modeling ensures consumer health safety across all operational modes.

⚙️ 2. Electromagnetic Energy Absorption in Human Tissue

When an antenna radiates in close proximity to human skin, electric field vectors (E) penetrate the conductive tissue layers. Water molecules and dissolved ions inside biological cells rotate rapidly under alternating electric fields, causing dielectric heating.

Selecting appropriate feedline wire gauges prevents resistive copper heating before RF power reaches the antenna feed point. Engineers calculate wire sizes using our Wire Size Calculator and verify line drop using our Electrical Wire & Cable Voltage Drop Calculator.

📐 3. Electrical & Calorimetric SAR Formulas

Electrical SAR (in Watts per kilogram) calculates internal tissue power dissipation using tissue conductivity (σ) and mass density (ρ):

ELECTRICAL SAR FORMULA
SAR (W/kg) = (σ × E_rms²) / ρ
σ = Tissue Conductivity (S/m) | E_rms = Internal RMS Electric Field (V/m) | ρ = Tissue Mass Density (kg/m³)

Thermal SAR is measured experimentally in laboratory liquid phantoms by observing initial temperature rise rates (dT/dt) upon RF power activation:

THERMAL CALORIMETRIC SAR FORMULA
SAR (W/kg) = C_tissue × (dT / dt)|t=0
C_tissue = Specific Heat Capacity of Tissue (~3600 J/(kg·°C) for brain) | dT/dt = Initial Temp Rise (°C/sec)

📊 4. Global FCC & ICNIRP Safety Limits Table

The table below summarizes mandatory legal SAR safety limits enforced by global regulatory bodies for wireless equipment:

Regulatory Agency & Region Local Head & Trunk SAR Limit Averaging Tissue Mass Whole-Body Average SAR Limit Limb SAR Limit (Hands/Feet)
FCC (United States / Canada) 1.60 W/kg 1.0 Gram of Tissue 0.08 W/kg 4.00 W/kg (over 10g)
ICNIRP / CE (Europe / Int'l) 2.00 W/kg 10.0 Grams of Tissue 0.08 W/kg 4.00 W/kg (over 10g)
Occupational / Controlled Zone 8.00 W/kg 10.0 Grams of Tissue 0.40 W/kg 20.0 W/kg

⚡ 5. Dielectric Properties of Human Head Tissue

Human tissues (skin, bone, gray matter, white matter) exhibit distinct relative permittivity (ε_r) and conductivity (σ) parameters across different wireless frequency bands.

Engineers evaluate thermal power dissipation in high-power transmitters using our Heat Sink Thermal Resistance Calculator and decode package markings using our SMD Resistor Code Calculator.

⚡ Local Peak SAR Concentration: Local SAR is non-uniform! Internal RF energy concentrates in small high-density hot spots directly adjacent to smartphone internal antenna feed points (e.g., lower edge or top corner of the handset).

🔌 6. SAM Anthropomorphic Head Phantom Testing Setup

Commercial SAR testing uses a Specific Anthropomorphic Mannequin (SAM) fiberglass shell filled with tissue-equivalent liquid matching human head dielectric parameters. Robotic E-field probes measure internal 3D field distributions at 1 mm increments.

✏️ 7. Induced Electric Field & Tissue Current Loop Diagram

Below is a custom biological schematic illustrating an alternating magnetic field B1(t) inducing an electric field E(t) and tissue eddy current loop I(t) inside biological tissue area A:

ELECTRIC FIELD E(t) E(t) E(t) current I(t) MAGNETIC FIELD B1(t) uniform vector field directed into paper and increasing: B1(t) = B1 cos(ωt) Conductive loop in tissue with area A

📝 8. Step-by-Step Practical Design Example

Goal: Calculate local SAR (W/kg) in muscle tissue (conductivity σ = 1.45 S/m, mass density ρ = 1040 kg/m³) exposed to an internal RMS electric field E_rms = 30 V/m.

  • Step 1: Calculate E_rms Squared (E²)
    E² = (30 V/m)² = 900 (V/m)²
  • Step 2: Apply Electrical SAR Formula
    SAR = (σ × E²) / ρ = (1.45 × 900) / 1040 = 1305 / 1040 = 1.255 Watts/kilogram (W/kg)
  • Step 3: Evaluate FCC Compliance
    The calculated local SAR of 1.255 W/kg satisfies the FCC 1.6 W/kg limit.

💻 9. Smartphone Antenna Power Back-Off & Proximity Sensors

Modern smartphones integrate capacitive proximity sensors (CapSensors) to detect human head or body contact. Engineers review hardware pinouts using our Arduino Board Pinout and our Raspberry Pi Pinout when implementing capacitive sensor controls.

Proximity Power Reduction

When head contact is detected, the phone automatically reduces RF transmit power by 3 dB to 6 dB, instantly cutting local SAR in half.

Dynamic SAR Time-Averaging

5G Smart Transmit algorithms monitor instantaneous SAR over rolling 100-second windows, allowing short high-speed data bursts while maintaining long-term SAR compliance.

🌡️ 10. Thermal Heating Risks & Whole-Body Exposure Limits

Whole-body SAR limits (0.08 W/kg) prevent systemic thermal stress. Designers analyze microstrip trace impedance using our Microstrip Impedance Calculator and verify line resistance with our PCB Trace Resistance Calculator.

💡 Ocular Sensitivity Note: Human eyes lack dense vascular blood circulation to carry away heat. Prolonged localized RF exposure causing internal tissue temperature rises above +1.0°C increases thermal cataract risks.

❓ 11. Frequently Asked Questions (10 Detailed Answers)

1. What is Specific Absorption Rate (SAR)? +
SAR measures the rate at which RF electromagnetic energy is absorbed by biological human tissue per unit mass, expressed in W/kg.
2. What is the electrical SAR formula? +
Electrical SAR is calculated as SAR = (σ × E²) / ρ, where σ is conductivity (S/m), E is electric field (V/m), and ρ is density (kg/m³).
3. What is the legal FCC SAR limit for mobile phones in the US? +
The FCC limits local smartphone SAR to 1.6 W/kg averaged over 1 gram of actual human tissue.
4. What is the legal European ICNIRP/CE SAR limit? +
ICNIRP guidelines limit local head/trunk SAR to 2.0 W/kg averaged over 10 grams of continuous tissue.
5. How is SAM phantom testing conducted? +
A fiberglass head phantom filled with brain-simulating liquid is exposed to a transmitting handset while robotic E-field probes map internal absorption.
6. How does frequency affect SAR penetration depth? +
Sub-1 GHz RF waves penetrate deeper into muscle/organ tissue, whereas millimeter-wave 5G (>6 GHz) energy is absorbed primarily in outer skin layers.
7. What is the difference between Whole-Body and Local SAR? +
Whole-Body SAR averages absorption over the entire body (limit 0.08 W/kg), while Local SAR measures peak hot spots in the head or hand (limit 1.6 W/kg).
8. How do proximity sensors help maintain SAR compliance? +
Capacitive proximity sensors detect when a phone is against an ear, triggering power back-off (reducing power by 3-6 dB) to lower SAR.
9. What is the thermal calorimetric SAR formula? +
Thermal SAR is calculated as SAR = C_tissue × (dT/dt)|t=0, where C_tissue is specific heat capacity and dT/dt is initial temperature rise rate.
10. What biological risks occur if SAR limits are exceeded? +
Excessive SAR causes localized tissue thermal heating. Eyes and testes are most vulnerable due to low blood flow heat dissipation.

🛠️ 13. Verified Engineering Calculators

Ohm's Law Calculator RF Field Strength Calculator Power Density Calculator Wire Size Calculator

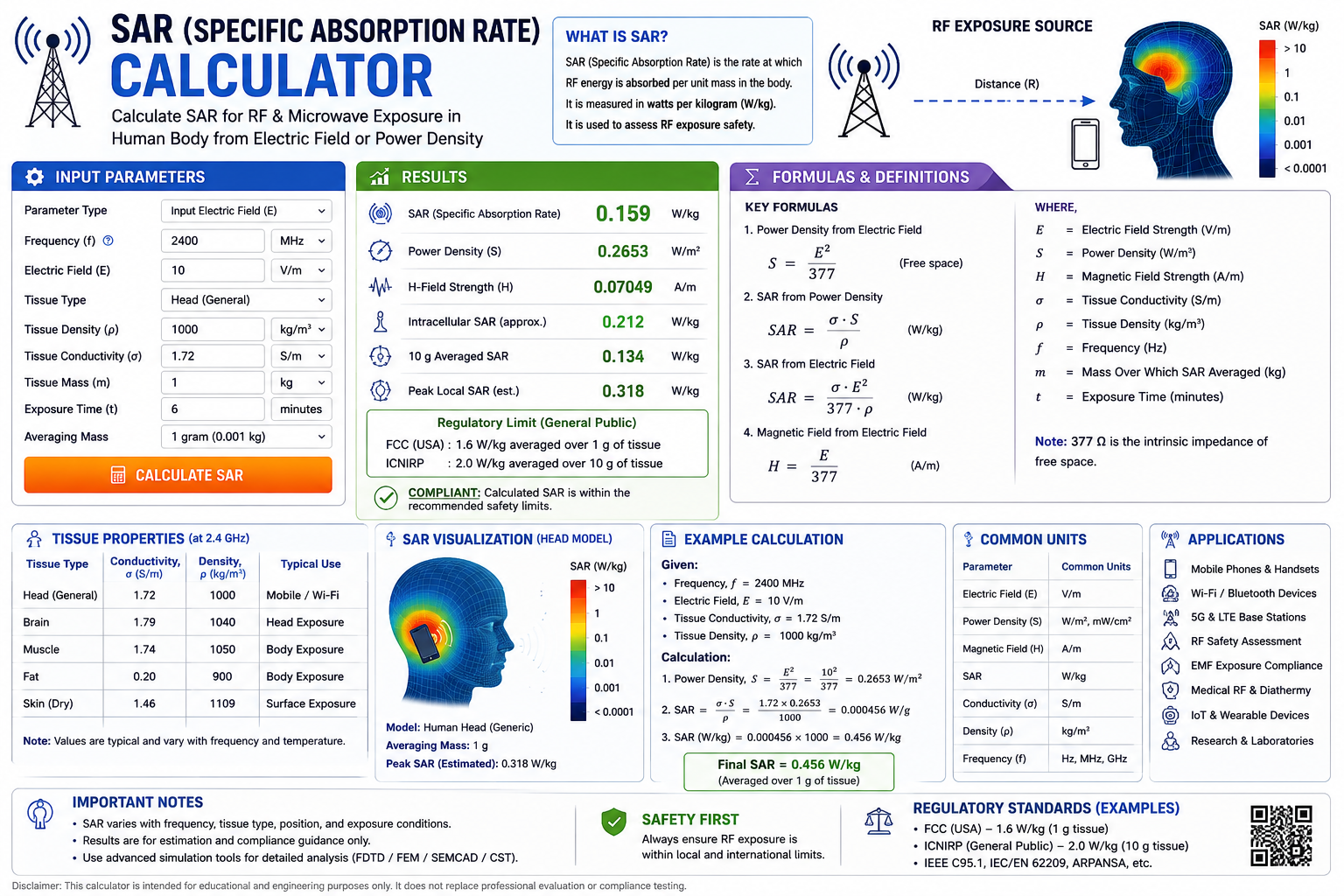

Try The Interactive SAR Calculator Tool
