🔬 1. Introduction to RF Power Density & Propagation
Radio frequency (RF) power density (S) quantifies the concentration of electromagnetic energy passing perpendicularly through a unit surface area at a specific distance from an antenna. While DC circuit power dissipation is calculated using our Ohm's Law Calculator or analyzed for indicator loads with our LED Resistor Calculator, wireless transmitters disperse energy outwards in 3D spatial wave patterns.
In cellular base station deployment, satellite earth stations, and radar systems, calculating power density is critical to ensure regulatory compliance with Maximum Permissible Exposure (MPE) health guidelines. When designing active transmitter power amplifier stages or drive networks, engineers evaluate gain and noise stability using our FET Buffer Amplifier Calculator alongside our Inverting Op-Amp Resistor Calculator.
Off-grid telemetry stations and remote wireless nodes require careful power management to balance radiation range against battery reserve limits. Designers evaluate energy capacity using our Battery Runtime Calculator and regulate transmitter power supply rails using our Adjustable Voltage Regulator Calculator. Precise power density modeling defines environmental safety boundaries around transmitting antennas.
⚙️ 2. Inverse-Square Law & Spherical Isotropic Expansion
As an electromagnetic wave propagates outward from an antenna, energy expands across an increasingly larger spherical surface area (A_sphere = 4 × π × R²). Consequently, power density diminishes inversely with the square of the distance (S ∝ 1 / R²).
Selecting heavy low-loss coaxial transmission lines prevents RF power attenuation between the transmitter power amplifier and the antenna feedhorn. Engineers calculate conductor sizing using our Wire Size Calculator and verify line drop using our Electrical Wire & Cable Voltage Drop Calculator.
📐 3. Far-Field Power Density (S) & EIRP Formulas
In the antenna far-field region, power density (S, in W/m² or mW/cm²) is calculated using Effective Isotropic Radiated Power (EIRP):
When expressing antenna gain in logarithmic dBi, convert dBi to linear numeric gain first: G_linear = 10^(G_dBi / 10).
📊 4. FCC & ICNIRP Human MPE Safety Limits Table
Regulatory agencies enforce Maximum Permissible Exposure (MPE) limits to prevent tissue heating in occupational and general public zones:
| Frequency Range |
General Public MPE (mW/cm²) |
General Public MPE (W/m²) |
Occupational MPE (mW/cm²) |
Averaging Time Window |
| 30 MHz - 300 MHz (VHF) |
0.20 mW/cm² |
2.0 W/m² |
1.00 mW/cm² |
30 Mins (Public) / 6 Mins (Occ) |
| 300 MHz - 1,500 MHz (UHF / Cellular) |
f / 1500 mW/cm² |
f / 150 W/m² |
f / 300 mW/cm² |
30 Mins (Public) / 6 Mins (Occ) |
| 1.5 GHz - 100 GHz (Wi-Fi / 5G / Radar) |
1.00 mW/cm² |
10.0 W/m² |
5.00 mW/cm² |
30 Mins (Public) / 6 Mins (Occ) |
⚡ 5. Safe Compliance Distance (R_safe) Calculation
Calculating the minimum safe distance (R_safe) establishes exclusion zone fencing around broadcast towers and radar sites to protect maintenance personnel.
Engineers evaluate transmitter thermal dissipation using our Heat Sink Thermal Resistance Calculator and decode passive component markings using our SMD Resistor Code Calculator.
⚡ High Power Radar Hazard: High-gain dish antennas driven by kilowatt transmitters generate hazardous near-field power densities exceeding 100 mW/cm²! Never look directly into an active horn feed or dish reflector while the RF transmitter is powered!
🔌 6. Near-Field vs Far-Field Boundary (Fraunhofer Distance)
Power density formulas (S = EIRP / 4πR²) apply strictly in the Far-Field (Fraunhofer region). The far-field boundary begins at Fraunhofer distance R_far = (2 × D²) / λ, where D is maximum antenna dimension and λ is wavelength.
✏️ 7. Isotropic Radiation Cone & Power Density Diagram
Below is a custom diagram illustrating an RF dish antenna emitter (PTX, GTX), distance vector (R), expanding radiation cone, and power density surface slices diminishing inversely with distance:
📝 8. Step-by-Step Practical Design Calculation Example
Goal: Calculate power density S (in mW/cm²) and safe compliance distance (R_safe) for a 2.4 GHz Wi-Fi transmitter delivering P_tx = +30 dBm (1.0 Watt) into a G_tx = +13 dBi directional antenna at distance R = 2.0 meters, given general public MPE limit = 1.0 mW/cm² (10 W/m²).
- Step 1: Calculate Linear EIRP
G_linear = 10^(13 / 10) = 19.95 | EIRP = 1.0 W × 19.95 = 19.95 Watts (19,950 mW)
- Step 2: Calculate Power Density (S) at R = 2.0 m
S = 19.95 W / [ 4 × π × (2.0)² ] = 19.95 / 50.265 = 0.397 W/m² (0.0397 mW/cm²)
This is well below the 1.0 mW/cm² MPE limit!
- Step 3: Calculate Safe Compliance Distance (R_safe)
R_safe = √[ 19.95 W / (4 × π × 10.0 W/m²) ] = √[ 19.95 / 125.66 ] = 0.398 Meters (39.8 cm).
💻 9. Cellular Base Station & Wi-Fi Router Site Safety
5G massive MIMO base stations and high-power Wi-Fi access points require calculating MPE boundary contours to establish safe exclusion zones for roof-top installation crews. Engineers review hardware pinouts using our Arduino Board Pinout and our Raspberry Pi Pinout when installing IoT gateway units.
Occupational vs Public MPE Zones
Occupational limits (trained workers) allow 5x higher power density exposure than general public limits, provided exposure time is monitored.
Multi-Transmitter Summation
When multiple co-located antennas transmit simultaneously, total exposure ratio (TER) must be summed: TER = Sum of [ S_i / MPE_i ] < 1.0.
🌡️ 10. Ground Reflection Multiplication Factors (+6 dB Spike)
When RF signals reflect off conductive ground or metal roofs, reflected waves interfere constructively with direct waves. Designers analyze microstrip line impedance using our Microstrip Impedance Calculator and verify line resistance with our PCB Trace Resistance Calculator.
💡 Ground Reflection Factor: Perfect ground reflection doubles electric field strength (E_total = 2 × E_direct), which quadruples power density (S_reflected = 4 × S_free_space)! Always include a 2.5x to 4x safety factor for antennas mounted near metallic surfaces.
❓ 11. Frequently Asked Questions (10 Detailed Answers)
1. What is RF power density (S)? +
RF power density is the radiated power passing perpendicularly through a unit surface area at a given distance from an antenna, expressed in W/m² or mW/cm².
2. What is the primary far-field power density formula? +
The primary formula is S = EIRP / (4 × π × R²) = (P_tx × G_tx) / (4 × π × R²).
3. How does the Inverse-Square Law affect power density? +
Power density decreases with the square of the distance (S ∝ 1 / R²). Doubling the distance drops power density to 25% of its initial value.
4. What is Effective Isotropic Radiated Power (EIRP)? +
EIRP is the total power an isotropic antenna would need to radiate to produce the same power density in a given direction (EIRP = P_tx × G_tx).
5. What is Maximum Permissible Exposure (MPE)? +
MPE represents regulatory health safety limits (FCC/ICNIRP) to protect humans from tissue heating caused by RF electromagnetic radiation.
6. How is safe compliance distance calculated? +
Safe distance is R_safe = Square Root of [ EIRP / (4 × π × MPE) ], defining the boundary where power density drops below health limits.
7. What is the difference between Near-Field and Far-Field regions? +
Near-field is close to the antenna where fields are reactive. Far-field (R > 2D²/λ) begins where wave fronts become planar and obey the inverse-square law.
8. How do you convert dBm to linear Watts? +
Linear power in Watts is P (W) = 10^((P_dBm - 30) / 10). For example, +30 dBm = 1.0 Watt, +40 dBm = 10.0 Watts.
9. How does ground reflection affect real-world power density? +
Ground reflection causes constructive wave interference, doubling electric field strength and multiplying calculated power density by up to 4 times (+6 dB).
10. How do you convert W/m² to mW/cm²? +
1 mW/cm² equals 10 W/m². To convert W/m² to mW/cm², divide by 10.
📚 12. Related Engineering Articles & Guides
To explore active op-amp topologies, read our guides on the Non-Inverting Op-Amp Resistor Calculator and the 555 Timer Astable Circuit Calculator. You can also verify passive color codes using our 3, 4, 5 & 6 Band Resistor Color Code Calculator.
🛠️ 13. Verified Engineering Calculators

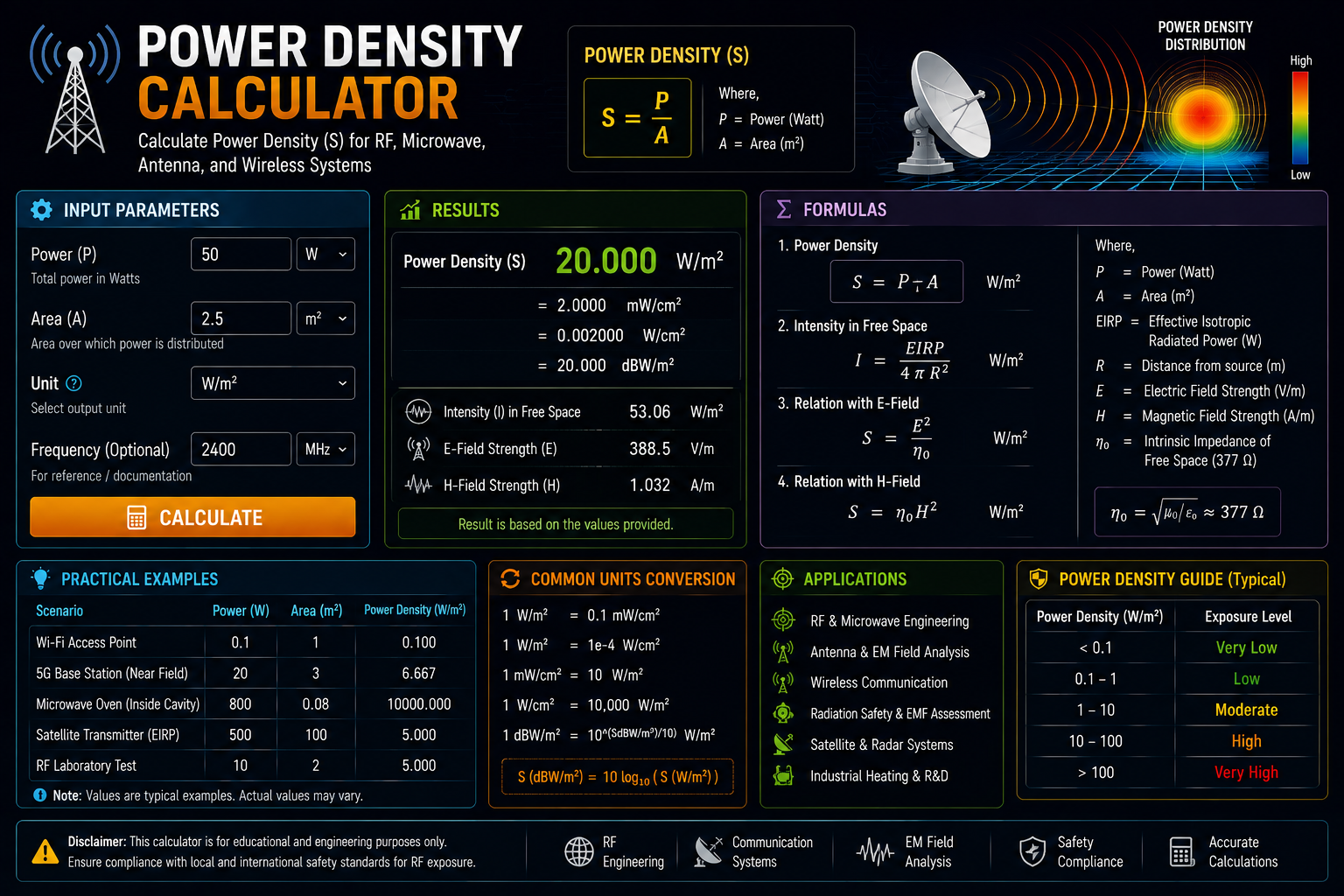

Try The Interactive Power Density Calculator Tool
