🔬 1. Introduction to RF Electric & Magnetic Field Strength

Radio frequency (RF) electric field strength (E, in Volts per meter) describes the magnitude of the electric potential gradient established in space by an electromagnetic wave. While static DC circuit voltages are calculated using our Ohm's Law Calculator or analyzed for indicator currents with our LED Resistor Calculator, radiated electromagnetic waves radiate combined electric (E) and magnetic (H) field vectors through space.

In electromagnetic compatibility (EMC) testing, antenna range calibration, and wireless broadcasting, quantifying electric field strength determines whether electronic equipment will operate reliably without suffering radiated radio frequency interference (RFI). When designing active receiver frontends or power amplifier driver stages, engineers evaluate gain stability using our FET Buffer Amplifier Calculator alongside our Inverting Op-Amp Resistor Calculator.

Remote transmitter test sites require careful power budgeting to deliver target electric field strengths across test distances. Designers evaluate battery operating lifespan using our Battery Runtime Calculator and regulate transmitter power supply rails using our Adjustable Voltage Regulator Calculator. Precise field strength modeling ensures compliance with international FCC and CE compliance standards.

⚙️ 2. Intrinsic Free-Space Wave Impedance (377 Ω)

In the far-field region (Fraunhofer zone), electromagnetic waves behave as plane waves where the ratio of electric field strength (E, in V/m) to magnetic field strength (H, in A/m) equals the intrinsic impedance of free space (η_0 = 377 Ohms = 120π Ohms).

Selecting heavy low-loss coaxial cables prevents power attenuation between RF power amplifiers and measurement antennas. Engineers calculate conductor sizing using our Wire Size Calculator and verify line drop using our Electrical Wire & Cable Voltage Drop Calculator.

📐 3. Far-Field Electric Field Strength (E) Formulas

Far-field electric field strength (E, in Volts per meter) is derived directly from Effective Isotropic Radiated Power (EIRP, in Watts) and distance (R, in meters):

FAR-FIELD ELECTRIC FIELD STRENGTH FORMULA
E (V/m) = Square Root of [ (30 × EIRP) / R² ] = (7.071 × Square Root of [ EIRP ]) / R
EIRP = P_tx × G_tx (Watts) | R = Distance (Meters) | 30 = η_0 / 4π = 377 / 12.566

To convert electric field strength in V/m directly to power density (S, in W/m²):

POWER DENSITY & MAGNETIC FIELD FORMULAS
S (W/m²) = E² / 377 | H (A/m) = E / 377

📊 4. Commercial & Military EMC Test Levels Table

International EMC standards specify standardized electric field strengths for radiated immunity and susceptibility testing:

Standard Specification Equipment Category Field Strength Level (V/m) Field Strength Level (dBuV/m)
IEC 61000-4-3 Level 1 Light commercial / residential environment 1.0 V/m 120.0 dBuV/m
IEC 61000-4-3 Level 2 Standard commercial / office environment 3.0 V/m 129.5 dBuV/m
IEC 61000-4-3 Level 3 Industrial factory environment 10.0 V/m 140.0 dBuV/m
ISO 11452-2 (Automotive) Vehicle electronic control units (ECU) 30.0 V/m - 100.0 V/m 149.5 - 160.0 dBuV/m
MIL-STD-461 RS103 Military avionics & naval combat systems 50.0 V/m - 200.0 V/m 154.0 - 166.0 dBuV/m

⚡ 5. Field Strength Conversion Units (V/m, dBuV/m, W/m²)

In electromagnetic interference (EMI) testing, high-sensitivity receivers express field strength in logarithmic decibel-microvolts per meter (dBuV/m):

Engineers evaluate transmitter heat dissipation using our Heat Sink Thermal Resistance Calculator and decode package markings using our SMD Resistor Code Calculator.

⚡ Distance Scaling Rule: Electric field strength decreases linearly with distance (E ∝ 1 / R). Doubling the distance from a transmitting antenna reduces electric field strength by exactly 50% (a 6 dB reduction in dBuV/m).

🔌 6. Antenna Factor (AF) & Spectrum Analyzer Calibration

Measuring electric field strength with a calibrated log-periodic or biconical antenna requires adding the Antenna Factor (AF, in dB/m): E (dBuV/m) = V_measured (dBuV) + AF (dB/m) + Cable Loss (dB).

✏️ 7. RF Field Wavefront & Anechoic Chamber Test Diagram

Below is a custom schematic illustrating an RF power amplifier driving a calibrated Yagi/Log-periodic transmit antenna inside an Anechoic Chamber, generating expanding RF field wavefront arcs toward the measurement plane:

OUTSIDE WORLD ANECHOIC CHAMBER AMPLIFIER ANTENNA RF FIELD MEASUREMENT PLANE

📝 8. Step-by-Step Practical Measurement Example

Goal: Calculate electric field strength E (in V/m and dBuV/m) at distance R = 3.0 meters from an EMC immunity test antenna driven with P_tx = 10.0 Watts into a G_tx = +6 dBi horn antenna.

  • Step 1: Calculate Linear EIRP
    G_linear = 10^(6 / 10) = 3.981 | EIRP = 10.0 W × 3.981 = 39.81 Watts
  • Step 2: Calculate Electric Field Strength (E in V/m)
    E = (7.071 × √[ 39.81 ]) / 3.0 = (7.071 × 6.31) / 3.0 = 14.87 Volts/meter (V/m)
  • Step 3: Convert to dBuV/m for EMC Logs
    E (dBuV/m) = 120 + 20 × log10(14.87) = 120 + 23.45 = 143.45 dBuV/m (Exceeds IEC 61000-4-3 Level 3).

💻 9. Electromagnetic Compatibility (EMC) Radiated Immunity

Radiated immunity testing verifies that medical equipment and automotive ECUs operate correctly when exposed to intense 10 V/m or 30 V/m RF electric fields. Engineers review hardware pinouts using our Arduino Board Pinout and our Raspberry Pi Pinout when installing industrial control modules.

CE Mark Immunity Testing

Commercial products must pass 3 V/m (residential) or 10 V/m (industrial) field strength testing across 80 MHz to 6 GHz without digital resets.

Automotive BCI & ALSE Testing

Automotive ECUs face severe 100 V/m radiated field strengths inside Anechoic Lined Shielded Enclosures (ALSE) to protect against mobile radio interference.

🌡️ 10. Ground Plane Reflections & Open Area Test Sites (OATS)

Open Area Test Sites (OATS) feature conductive ground planes where ground reflected waves interfere with direct waves. Designers analyze microstrip line impedance using our Microstrip Impedance Calculator and verify line resistance with our PCB Trace Resistance Calculator.

💡 Height Search Scanning: In compliance OATS testing, measurement antennas are scanned vertically from 1 to 4 meters height to locate peak constructive field interference points!

❓ 11. Frequently Asked Questions (10 Detailed Answers)

1. What is RF Electric Field Strength (E)? +
Electric field strength (E) is the potential gradient generated by an electromagnetic wave at a given distance, expressed in Volts per meter (V/m) or dBuV/m.
2. What is the primary far-field electric field strength formula? +
The primary formula is E (V/m) = (7.071 × √[ EIRP ]) / R, where EIRP is in Watts and R is distance in meters.
3. What is the relationship between Electric (E) and Magnetic (H) fields? +
In free space, E / H = 377 Ohms (intrinsic wave impedance). Thus, magnetic field strength is H (A/m) = E / 377.
4. How does power density (S) convert to electric field strength (E)? +
Power density and electric field strength relate via S = E² / 377, which rearranges to E = √[ S × 377 ].
5. How do you convert V/m to dBuV/m for EMC testing? +
Conversion to dBuV/m is calculated as E (dBuV/m) = 120 + 20 × log10(E in V/m).
6. Why are Anechoic Chambers used for field strength testing? +
Anechoic chambers use carbon absorber pyramids on walls to eliminate wave reflections, creating an ideal free-space test environment.
7. What is Antenna Factor (AF)? +
Antenna Factor (dB/m) converts measured receiver voltage in dBuV into actual electric field strength: E (dBuV/m) = V_rx + AF + Cable_loss.
8. What are standard commercial EMC test field strengths? +
IEC 61000-4-3 specifies 3 V/m for commercial equipment and 10 V/m for industrial equipment.
9. How does distance affect electric field strength? +
Electric field strength decreases linearly with distance (E ∝ 1 / R). Doubling distance cuts field strength by 50% (-6 dB).
10. What is the difference between Near-Field and Far-Field wave impedance? +
In the near-field, wave impedance depends separately on source type (E or H dominated). In the far-field, wave impedance stabilizes at 377 Ohms.

🛠️ 13. Verified Engineering Calculators

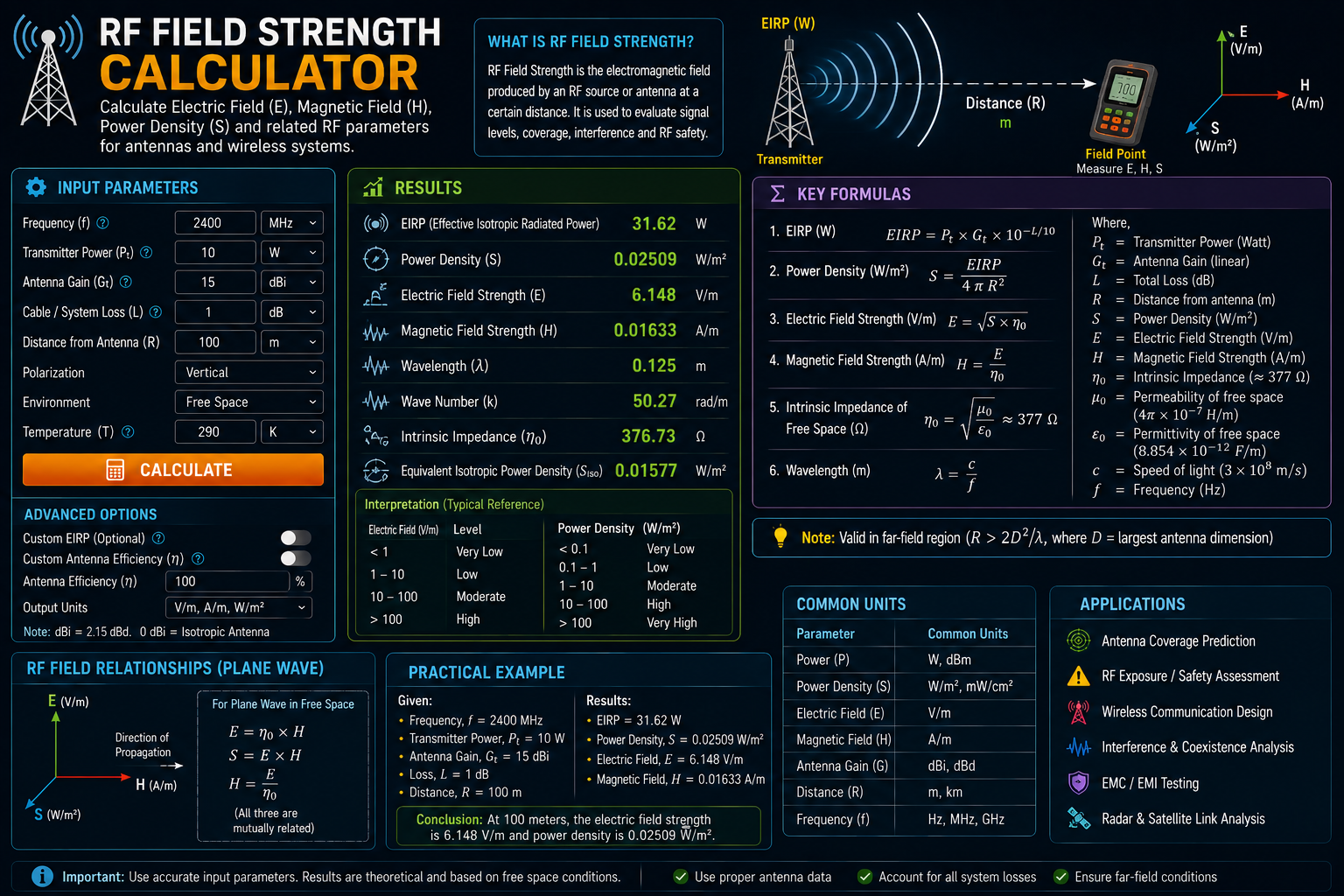

Try The Interactive RF Field Strength Tool
