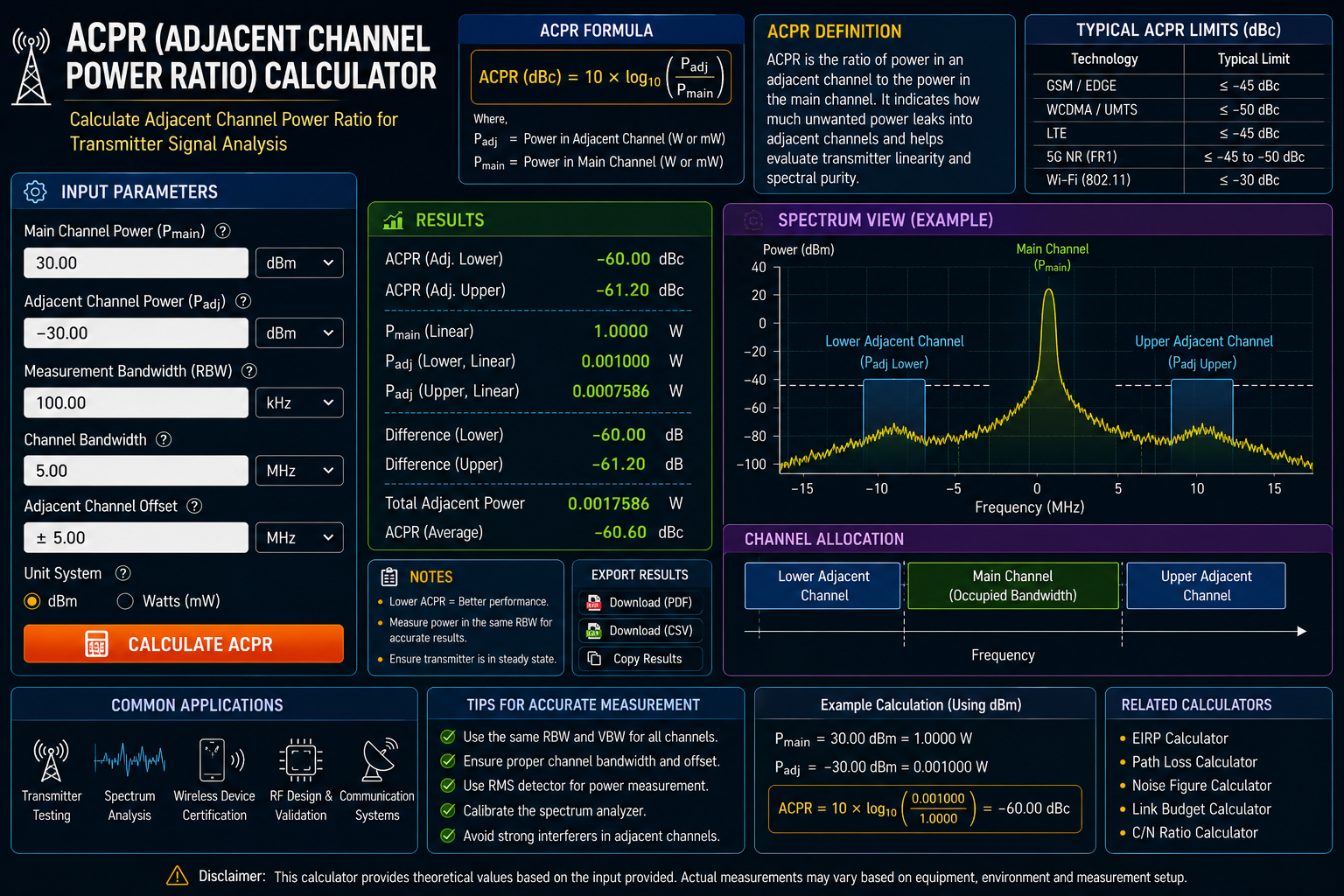

🔬 1. Introduction to RF Power Amplifier Linearity
Adjacent Channel Power Ratio (ACPR), also known as Adjacent Channel Leakage Ratio (ACLR), is a critical linearity figure-of-merit in radio frequency (RF) wireless transmitters. While basic DC bias operating points are evaluated using our Ohm's Law Calculator or analyzed for supply currents with our LED Resistor Calculator, modern wideband digital modulation schemes demand strict spectral containment.
In high-frequency power amplifiers (PAs), non-linear amplification creates intermodulation distortion products that spill over into neighboring radio channels. When designing active RF driver stages or matching networks, engineers evaluate gain stability using our FET Buffer Amplifier Calculator alongside our Inverting Op-Amp Resistor Calculator. This prevents out-of-band energy from violating regulatory emission standards.
Transmitter power budgeting must balance power amplifier power-added efficiency (PAE) against strict ACPR linearity limits. Designers evaluate battery operating lifespan using our Battery Runtime Calculator and regulate RF supply rails using our Adjustable Voltage Regulator Calculator. Precise ACPR modeling ensures maximum RF coverage without interfering with adjacent wireless channels.
⚙️ 2. Intermodulation Distortion (IMD3) & Spectral Regrowth
When multi-carrier modulated signals (such as 5G OFDM or 64-QAM) pass through a power amplifier operating near its 1dB compression point (P1dB), third-order intermodulation products (IMD3 = 2f1 - f2 and 2f2 - f1) fall directly adjacent to the main signal bandwidth.
Sizing heavy RF feedlines prevents conductor resistance from dropping power rail voltage during high-power transmit bursts. Engineers calculate wire sizes using our Wire Size Calculator and verify line attenuation using our Electrical Wire & Cable Voltage Drop Calculator.
📐 3. ACPR Calculation Formula (dBc Ratio)
ACPR expresses the ratio of total integrated power leaked into adjacent channels relative to integrated power in the main channel, expressed in decibels relative to carrier (dBc):
When channel powers are measured in linear Watts (mW) rather than logarithmic dBm:
📊 4. 3GPP Cellular Standards ACPR Requirements Table
Commercial wireless communication standards enforce minimum ACPR/ACLR limits to maintain co-existence between adjacent cell sites:
| Wireless Standard |
Main Channel Bandwidth |
Adjacent Offset Offset Frequency |
Minimum Required ACPR / ACLR |
| WCDMA / 3G UMTS |
3.84 MHz |
5.0 MHz Offset |
-45.0 dBc |
| 4G LTE Base Station (BS) |
20.0 MHz |
20.0 MHz Offset |
-45.0 dBc |
| 4G LTE User Equipment (UE) |
20.0 MHz |
20.0 MHz Offset |
-30.0 dBc |
| 5G NR Sub-6 GHz (FR1) |
100.0 MHz |
100.0 MHz Offset |
-31.0 dBc (UE) / -45 dBc (BS) |
| Wi-Fi 6 (802.11ax) |
80.0 MHz / 160.0 MHz |
Adjacent Channel Mask |
-35.0 dBc to -40.0 dBc |
⚡ 5. High PAPR & Modulation Envelope Saturation
Modern digital modulation uses non-constant envelope signals with high Peak-to-Average Power Ratios (PAPR = 8 dB to 11 dB). Signal peaks push the power amplifier into non-linear gain compression, accelerating spectral regrowth.
Engineers evaluate thermal dissipation during high-power RF operation using our Heat Sink Thermal Resistance Calculator and decode package markings using our SMD Resistor Code Calculator.
⚡ Spectral Interference Warning: Failing ACPR compliance causes your transmitter to bleed interference into neighboring channels. In licensed cellular bands, poor ACPR triggers severe FCC/3GPP regulatory non-compliance fines and blocks wireless operator certification!
🔌 6. Digital Predistortion (DPD) Linearization
Digital Predistortion (DPD) pre-distorts baseband digital signals with inverse non-linear amplitude (AM-AM) and phase (AM-PM) functions before reaching the PA, expanding the amplifier's linear output region and improving ACPR by 10 dB to 20 dB.
✏️ 7. RF Spectrum & ACPR Graph Schematic Diagram
Below is a custom RF spectrum graph illustrating main channel signal power (green) alongside lower and upper adjacent channel leakage power (red) and the resulting ACPR measurement in dBc:
📝 8. Step-by-Step Practical Design Example
Goal: Calculate ACPR in dBc for an LTE power amplifier transmitting P_main = +40.0 dBm in a 20 MHz channel when spectrum analyzer measurements show lower adjacent channel leakage power P_adjacent = -5.0 dBm.
- Step 1: Identify Main & Adjacent Power Levels
P_main = +40.0 dBm (10.0 Watts) | P_adjacent = -5.0 dBm (0.316 mW)
- Step 2: Apply ACPR Ratio Formula
ACPR (dBc) = P_adjacent (dBm) - P_main (dBm) = -5.0 dBm - (+40.0 dBm) = -45.0 dBc
- Step 3: Evaluate 3GPP Compliance
The calculated ACPR of -45.0 dBc exactly satisfies the 3GPP LTE Base Station requirement (-45 dBc max).
💻 9. Power Amplifier Back-Off (OBO) Optimization
Backing off power amplifier output power (Output Back-Off, OBO) below P1dB keeps signal peaks within the linear operating range. Engineers review hardware pinouts using our Arduino Board Pinout and our Raspberry Pi Pinout when interfacing digital power control lines.
The 2-for-1 Back-Off Rule
In un-predistorted Class-AB amplifiers, every 1 dB of output power back-off improves 3rd-order intermodulation distortion (IMD3) and ACPR by approximately 2 dB.
Efficiency vs Linearity Tradeoff
High Output Back-Off (e.g., 10 dB OBO) yields excellent ACPR (-50 dBc) but drops power amplifier drain efficiency from 60% down to under 20%.
🌡️ 10. Spectrum Analyzer Measurement Procedures
Accurate ACPR measurements require setting spectrum analyzer Resolution Bandwidth (RBW) to less than 1% to 3% of total channel bandwidth to avoid noise floor smearing. Designers analyze microstrip trace impedance using our Microstrip Impedance Calculator and verify line resistance with our PCB Trace Resistance Calculator.
💡 Spectrum Analyzer Dynamic Range Tip: Ensure the spectrum analyzer's internal mixer third-order intercept point (TOI) is at least 15 dB better than the PA under test, or analyzer mixer non-linearity will artificially worsen your measured ACPR!
❓ 11. Frequently Asked Questions (10 Detailed Answers)
1. What is Adjacent Channel Power Ratio (ACPR)? +
ACPR is the ratio of integrated power leaked into adjacent non-allocated frequency channels relative to integrated power in the main transmitted channel, expressed in dBc.
2. What is the primary ACPR formula? +
The primary formula is ACPR (dBc) = P_adjacent (dBm) - P_main (dBm).
3. Why is a more negative dBc value better for ACPR? +
A more negative ACPR value (e.g., -50 dBc vs -30 dBc) indicates lower distortion leakage and reduced interference to neighboring users.
4. What causes spectral regrowth in power amplifiers? +
Non-linear gain and phase compression (AM-AM/AM-PM distortion) near PA saturation generate 3rd-order intermodulation products (IMD3) that spill into adjacent bands.
5. How does high PAPR affect ACPR performance? +
High Peak-to-Average Power Ratios (PAPR = 8-11 dB) push signal voltage peaks into PA saturation, driving up intermodulation distortion unless power back-off is applied.
6. What is Digital Predistortion (DPD)? +
DPD pre-distorts baseband digital signals with inverse non-linear functions before amplification, cancelling PA distortion and improving ACPR by 10 dB to 20 dB.
7. What is the difference between ACPR and ACLR? +
ACPR and ACLR measure the exact same physical ratio. ACPR is traditional US wireless terminology, while ACLR is standard 3GPP/LTE terminology.
8. How is integrated channel power measured? +
A spectrum analyzer integrates Power Spectral Density (PSD in dBm/Hz) across specified channel bandwidths (e.g., 20 MHz for LTE) to yield total power in dBm.
9. How does power amplifier back-off improve ACPR? +
Operating a PA below P1dB keeps signal peaks in the linear region, reducing 3rd-order distortion (IMD3) by ~2 dB for every 1 dB of back-off.
10. What are standard 3GPP LTE/5G ACPR limits? +
3GPP LTE base stations specify a minimum ACLR/ACPR of -45 dBc, while 5G NR user equipment requires at least -31 dBc.
