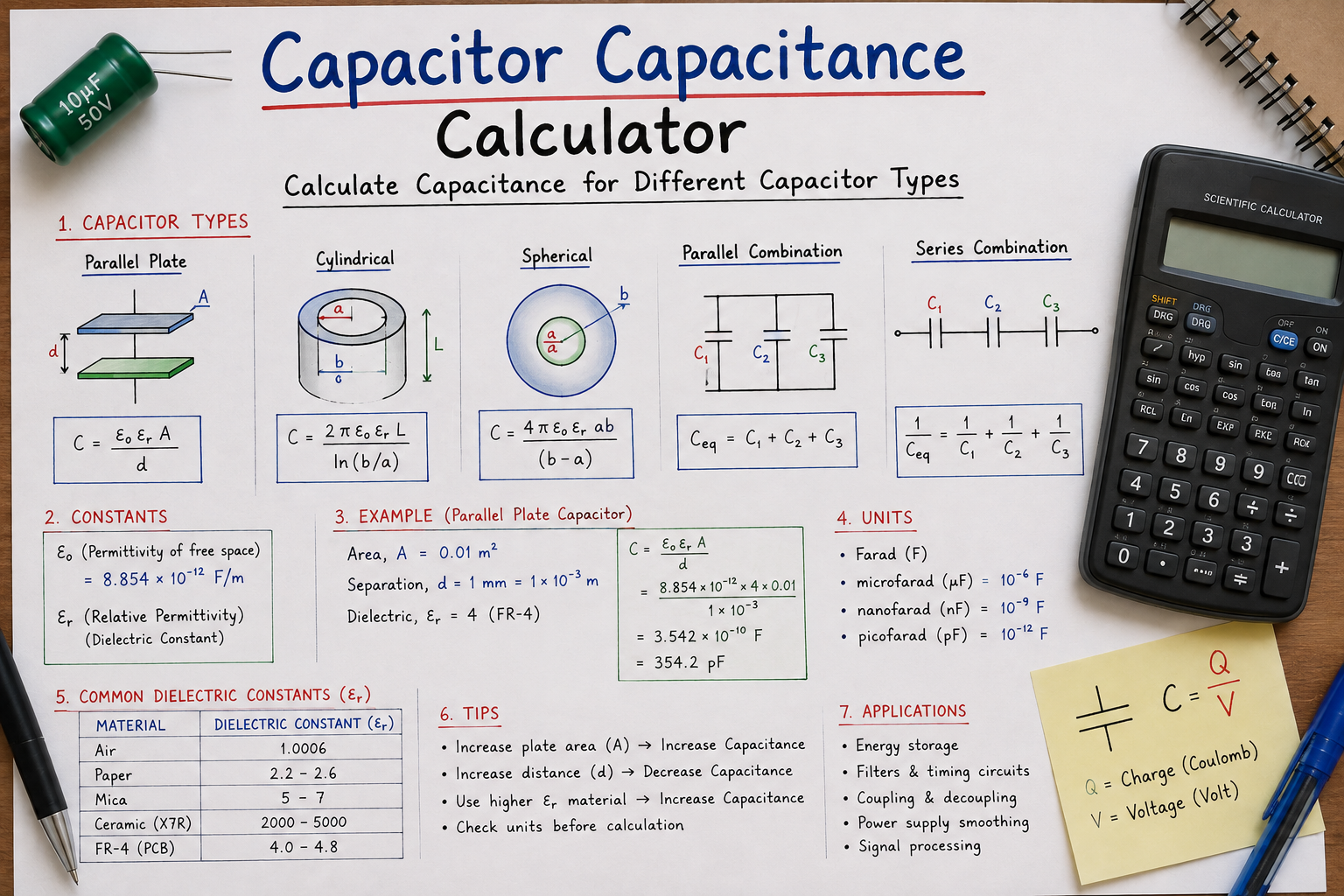

🔬 1. Introduction to Electrostatic Capacitance

Capacitance represents one of the three fundamental passive properties in electrical engineering, defining a system's capacity to store electrostatic energy across an electric field. Whether you are analyzing simple resistive voltage dividers using our Ohm's Law Calculator or sizing current-limiting networks with our LED Resistor Calculator, capacitive charge storage is critical for power smoothing, timing, and noise decoupling across physical PCBs.

In precision analog frontend designs, capacitors establish frequency cutoffs and filter transient noise spikes before reaching active amplifier stages. When designing active filters or buffer networks, engineers verify gain and bias stability using our FET Buffer Amplifier Calculator alongside our Inverting Op-Amp Resistor Calculator. This prevents high-frequency oscillation and maintains clean signal conditioning.

Power supply decoupling networks rely heavily on bulk storage capacitors to maintain stable voltage rails during rapid load switching. Designers evaluate power supply discharge timelines using our Battery Runtime Calculator and regulate input rails using our Adjustable Voltage Regulator Calculator. These energy reservoirs prevent momentary voltage sags from resetting sensitive microcontroller cores.

⚙️ 2. Dielectric Materials & Permittivity Physics

A parallel plate capacitor consists of two conductive metallic plates separated by an insulating dielectric medium. When an external voltage source is applied across the plates, an electric field develops across the dielectric, causing positive charge (+Q) to accumulate on one plate and negative charge (-Q) on the opposite plate.

Calculating conductor sizing and trace geometry prevents excessive resistance along charging paths. Engineers analyze power trace limits using our Wire Size Calculator and verify line attenuation using our Electrical Wire & Cable Voltage Drop Calculator. This ensures rapid charge transfer without resistive voltage drops.

📐 3. Mathematical Derivations & Stored Energy

The core physical formula governing parallel plate capacitance combines geometry and dielectric material properties:

PARALLEL PLATE CAPACITANCE FORMULA
C = ε × A / d = ε_r × ε_0 × A / d
C = Capacitance (Farads) | A = Plate Area (m²) | d = Plate Separation (m) | ε_0 = Permittivity of Vacuum (8.854 × 10⁻¹² F/m)

The electrostatic energy (E, in Joules) stored within the dielectric field is calculated using charge and voltage relationships:

STORED ELECTROSTATIC ENERGY FORMULA
E = 0.5 × C × V² = 0.5 × Q × V

📊 4. Common Dielectric Constants Reference Chart

Inserting dielectric insulators between conductive plates multiplies total capacitance by the material's Relative Permittivity (ε_r or K):

Dielectric Material Relative Permittivity (ε_r) Dielectric Strength (kV/mm) Primary Component Usage
Vacuum / Air 1.0000 / 1.0006 3.0 Tuning capacitors, RF air gaps
Polyester (Mylar) 3.2 15.0 Film capacitors, audio filtering
Mica Material 5.4 - 7.0 118.0 High-frequency RF power capacitors
Aluminum Oxide 9.6 250.0 Electrolytic smoothing capacitors
Class 2 Ceramic (X7R) 1,200 - 3,000 10.0 General SMD decoupling capacitors

⚡ 5. Series vs Parallel Capacitor Array Rules

Connecting capacitors in parallel increases total plate surface area, adding individual capacitance values directly (C_total = C1 + C2 + C3). Conversely, series connections increase effective dielectric distance, reducing total capacitance according to reciprocal summation rules (1/C_total = 1/C1 + 1/C2 + 1/C3).

Engineers evaluate thermal power dissipation during high-ripple AC operation using our Heat Sink Thermal Resistance Calculator and decode package markings using our Ceramic Capacitor Code Calculator. Applying a 50% voltage de-rating margin prevents premature dielectric degradation.

⚡ Voltage De-rating Rule: Always select capacitors rated for at least twice your maximum operational circuit voltage. A 16V rated ceramic capacitor exposed to a 12V supply line loses up to 60% of its nominal capacitance due to DC bias degradation effects!

🔌 6. Capacitive Reactance & AC Circuit Behavior

Capacitors resist changes in voltage by supplying or absorbing reactive current. Capacitive Reactance (X_C) drops as frequency rises:

CAPACITIVE REACTANCE FORMULA
X_C = 1 / (2 × π × f × C)
X_C = Reactance (Ohms) | f = Frequency (Hz) | C = Capacitance (Farads)

✏️ 7. Parallel Plate Diagrams & Dielectric Theory

Below is a custom 3D cross-sectional diagram illustrating a parallel plate capacitor, showing top and bottom conductive plates, internal electric field arrows (E), charge storage (+Q/-Q), and dielectric layer orientation:

+Q -Q A + + + + + + + + + + + + + + + + + + + + + + + + + + E d E = V / d C = εA / d C = Q / V dielectric ε conductive plate

📝 8. Step-by-Step Practical Design Example

Goal: Calculate the total capacitance for a custom PCB air-gap sensor with plate area A = 0.05 m² and separation distance d = 0.001 m (1 mm).

  • Step 1: Identify Permittivity of Air
    ε_air ≈ ε_0 = 8.854 × 10⁻¹² F/m
  • Step 2: Apply Parallel Plate Formula
    C = (8.854 × 10⁻¹² × 0.05) / 0.001 = 4.427 × 10⁻¹⁰ Farads (442.7 pF)
  • Step 3: Stored Energy at 12V DC
    E = 0.5 × (4.427 × 10⁻¹⁰) × (12)² = 3.187 × 10⁻⁸ Joules (3.187 nJ).

💻 9. Decoupling & Filtering in Microcontroller Layouts

Digital IC switching creates fast current surges that corrupt local power rails. Engineers place 100 nF ceramic surface-mount decoupling capacitors as close as possible to microcontroller power pins. Check board headers using our Arduino Board Pinout and our Raspberry Pi Pinout to position bypass components properly.

High-Frequency Bypass (100 nF)

Low ESR ceramic capacitors filter high-frequency switching noise (>10 MHz) directly at IC power pins.

Bulk Storage (10 µF - 100 µF)

Electrolytic or Tantalum capacitors absorb low-frequency voltage sags during heavy micro-controller load transitions.

🌡️ 10. ESR & Dielectric Breakdown Safety Margins

Printed circuit trace inductance combined with decoupling capacitors creates parasitic LC resonant circuits. Hardware designers analyze high-frequency trace impedance using our Microstrip Impedance Calculator and verify line losses with our PCB Trace Resistance Calculator.

💡 Low ESR Advantage: Always select low Equivalent Series Resistance (ESR) ceramic capacitors for switched-mode power supply output filters. Low ESR minimizes internal ripple heating and extends capacitor operating life under heavy AC load currents.

❓ 11. Frequently Asked Questions (10 Detailed Answers)

1. What is electrical capacitance? +
Capacitance is the ability of a component or circuit to store electrical charge per unit of potential difference, measured in Farads (F).
2. What is the primary parallel plate formula? +
The formula is C = ε × A / d, where ε is dielectric permittivity, A is plate area, and d is plate separation distance.
3. What is the relationship between Q, C, and V? +
Stored charge (Q, in Coulombs) equals capacitance (C, in Farads) multiplied by applied voltage (V, in Volts): Q = C × V.
4. How does dielectric constant (K) increase capacitance? +
Inserting a dielectric insulator increases capacitance by a factor equal to the material's relative permittivity (ε_r).
5. How much energy is stored in a charged capacitor? +
Electrostatic energy (E, in Joules) is calculated as E = 0.5 × C × V².
6. Why is a Farad such a large unit? +
1 Farad holds 1 Coulomb of charge at 1 Volt. Practical electronics use microfarads (µF), nanofarads (nF), or picofarads (pF).
7. What happens if breakdown voltage is exceeded? +
Exceeding rated voltage causes dielectric breakdown, resulting in arcing, short-circuiting, and permanent destruction.
8. How do series and parallel capacitor arrangements differ? +
Parallel capacitors add directly (C_total = C1 + C2). Series capacitors reduce total capacitance (1/C_total = 1/C1 + 1/C2).
9. What is Equivalent Series Resistance (ESR)? +
ESR represents internal resistive losses within leads, plates, and dielectrics, causing heat generation under high-frequency AC switching.
10. How does frequency affect capacitive reactance? +
Capacitive reactance decreases as frequency rises (X_C = 1 / (2πfC)). Capacitors block DC while passing AC signals easily.
