🔬 1. Introduction to RC Transient Dynamics
In electrical engineering, transient analysis describes how voltage and current waveforms shift over time when a circuit transitions between steady states. When analyzing simple resistive networks using our Ohm's Law Calculator or sizing current-limiting elements with our LED Resistor Calculator, voltage changes occur instantly. However, inserting a capacitor introduces energy storage delay governed by RC time constant dynamics.
In active analog frontends, RC timing networks set operational bandwidth and prevent high-frequency noise from destabilizing active gain stages. When configuring operational amplifier feedback loops or active filters, engineers analyze dynamic response using our FET Buffer Amplifier Calculator alongside our Inverting Op-Amp Resistor Calculator. This ensures that transient voltage spikes do not cause ringing or saturation.
Power supply startup sequencing also relies on RC time constant delays to hold reset lines low until DC voltage rails stabilize fully. Designers evaluate energy capacity curves using our Battery Runtime Calculator and optimize output rails using our Adjustable Voltage Regulator Calculator. Controlled power-on delays prevent flash memory corruption during cold boots.

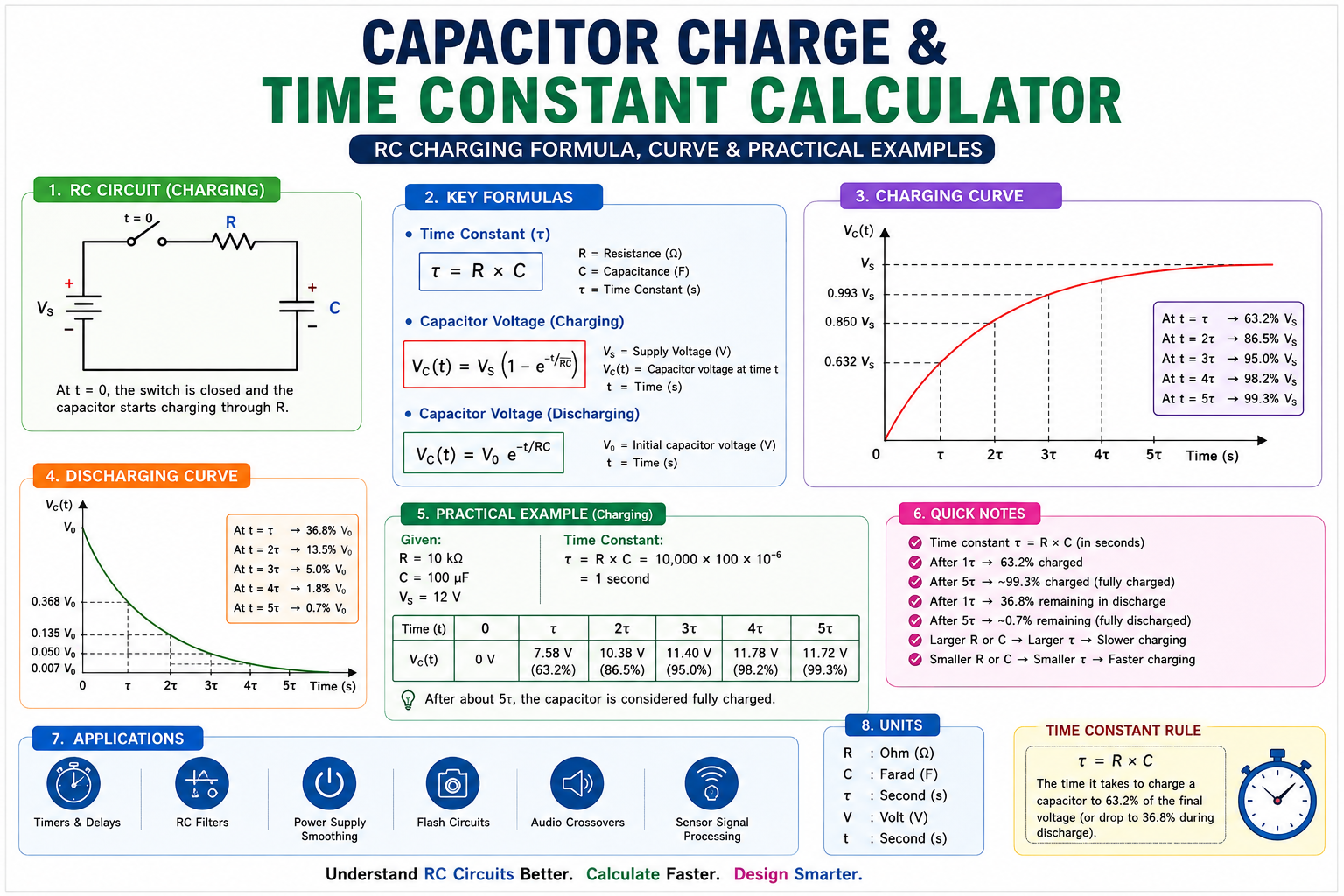

⚙️ 2. The Physics of RC Time Constants (Tau)
An RC time constant, denoted by the Greek letter tau (τ), defines the physical time required for a capacitor to charge to approximately 63.2% of its maximum applied voltage through a series resistor, or discharge to 36.8% of its initial charge.
Proper wire sizing and low-resistance board traces prevent unwanted parasitic resistance from altering calculated RC time constants. Engineers calculate conductor cross-sections using our Wire Size Calculator and verify line attenuation using our Electrical Wire & Cable Voltage Drop Calculator. This ensures that environmental wiring losses do not shift critical timing delays.
📐 3. Mathematical Charging & Discharging Formulas
The primary formula for calculating the time constant (τ, in seconds) is the direct product of series resistance and capacitance:
The instantaneous voltage Vc(t) across a charging capacitor at any elapsed time t is calculated using Euler's exponential equation:
📊 4. Time Constant Multipliers (1τ to 5τ Voltage Table)
Because charging follows a logarithmic curve, full charge is reached asymptotically over multiple time constant intervals:
| Time Interval (Tau) |
Elapsed Time Formula |
Charging Voltage (% of V0) |
Discharging Voltage (% of V0) |
| 1τ (1 Time Constant) |
t = 1 × R × C |
63.2% Charged |
36.8% Remaining |
| 2τ (2 Time Constants) |
t = 2 × R × C |
86.5% Charged |
13.5% Remaining |
| 3τ (3 Time Constants) |
t = 3 × R × C |
95.0% Charged |
5.0% Remaining |
| 4τ (4 Time Constants) |
t = 4 × R × C |
98.2% Charged |
1.8% Remaining |
| 5τ (Full Charge State) |
t = 5 × R × C |
99.3% Charged (Fully Charged) |
0.7% Remaining (Fully Discharged) |
⚡ 5. Initial Current Surges & Power Dissipation
At the exact instant power is applied (t = 0), an uncharged capacitor acts as a temporary short circuit, drawing maximum initial inrush current (I_max = V0 / R). As electrostatic charge builds on the plates, opposing voltage develops, causing current flow to decay exponentially toward zero.
Engineers evaluate peak component heat dissipation using our Heat Sink Thermal Resistance Calculator and decode package markings using our Ceramic Capacitor Code Calculator. Sizing series resistors correctly prevents thermal overload during repetitive charge/discharge cycles.
⚡ Inrush Protection Rule: Connecting large bulk capacitors (e.g., 1000 µF) directly across a DC power rail without series resistance causes severe inrush current surges that can pit relay contacts, trip power supply overcurrent protection, or melt PCB trace fuses!
🔌 6. RC Low-Pass & High-Pass Filtering Frequency Cutoff
An RC timing circuit also functions as a passive frequency filter. The 3dB cutoff frequency (f_c) where signal power drops by 50% is calculated as:
✏️ 7. RC Charging & Current Decay Curves Diagram
Below is an engineering plot illustrating parallel voltage accumulation (blue curve) rising toward 100% alongside current decay (red curve) dropping to zero over 5 time constants (1τ to 5τ):
📝 8. Step-by-Step Practical Calculation Example
Goal: Calculate the time constant, 1τ voltage, and full 5τ charge time for a circuit with R = 10 kΩ (10,000 Ω) and C = 100 µF (0.0001 F) powered by V0 = 10V DC.
- Step 1: Calculate Time Constant (τ)
τ = R × C = 10,000 Ω × 0.0001 F = 1.0 Second
- Step 2: Calculate Voltage at 1τ (63.2% Charge)
Vc(1s) = 10V × (1 - e⁻¹) = 10V × 0.632 = 6.32 Volts
- Step 3: Calculate Time to Reach Full Charge (5τ)
t_full = 5 × τ = 5 × 1.0s = 5.0 Seconds (Reaches 9.93V).
💻 9. 555 Timer IC & Reset Delay Interfacing
In 555 timer IC circuits, RC time constants set pulse widths and oscillation frequencies. Hardware designers review pinout configurations using our Arduino Board Pinout and our Raspberry Pi Pinout to integrate external hardware triggers safely.
Monostable Pulse Width
The output pulse high duration is calculated as t = 1.1 × R × C, representing the exact time needed to charge the capacitor to 2/3 VCC threshold.
Hardware Reset Delay
Placing an RC network on a microcontroller active-low RESET pin holds the chip in reset for several milliseconds until power supply rails reach 3.3V/5V stability.
🌡️ 10. Microcontroller ADC Sampling & Debouncing
Pushbutton mechanical chatter creates voltage spikes during button presses. Hardware debouncing places a 10 kΩ resistor and 100 nF capacitor across input pins, creating a 1 ms time constant (τ = 10,000 × 100×10⁻⁹ = 0.001s) that filters switch noise. Designers calculate trace impedance using our Microstrip Impedance Calculator and verify line resistance with our PCB Trace Resistance Calculator.
💡 ADC Source Impedance Rule: Microcontroller ADCs require low source impedance (typically <10 kΩ) to charge internal sample-and-hold capacitors rapidly. If using high-resistance RC filters, add a unity-gain op-amp buffer before the ADC pin to prevent measurement inaccuracies.
❓ 11. Frequently Asked Questions (10 Detailed Answers)
1. What is an RC time constant (tau)? +
An RC time constant (τ) is the time required for a capacitor to charge to 63.2% of supply voltage or discharge to 36.8% of initial voltage.
2. What is the formula for calculating tau? +
The formula is τ = R × C, where τ is in seconds, R is in Ohms, and C is in Farads.
3. How many time constants equal full charge? +
A capacitor is considered fully charged (99.3%) after 5 time constants (5τ).
4. What is the capacitor charging voltage formula? +
The exponential charging voltage formula is V(t) = V0 × (1 - e^(-t / τ)).
5. What is the capacitor discharging voltage formula? +
The discharging voltage formula is V(t) = V0 × e^(-t / τ).
6. What voltage percentages are reached at 1τ to 5τ? +
Charging reaches 63.2% at 1τ, 86.5% at 2τ, 95.0% at 3τ, 98.2% at 4τ, and 99.3% at 5τ.
7. How does current behave during charging? +
At t = 0, current is maximum (I_max = V0 / R). As voltage builds, current decays exponentially toward zero.
8. Why are time constants important in 555 timers? +
In 555 timer circuits, pulse duration depends directly on the time constant required to reach 2/3 VCC threshold voltage (t = 1.1 × R × C).
9. How does an RC network act as a low-pass filter? +
High frequencies bypass to ground through the capacitor's low reactance, while signals below cutoff frequency (f_c = 1 / (2πRC)) pass to Vout.
10. What is the unit of measurement for electrical charge? +
Electrical charge is measured in Coulombs (C), where 1 Coulomb = 1 Ampere-second (Q = I × t = C × V).
