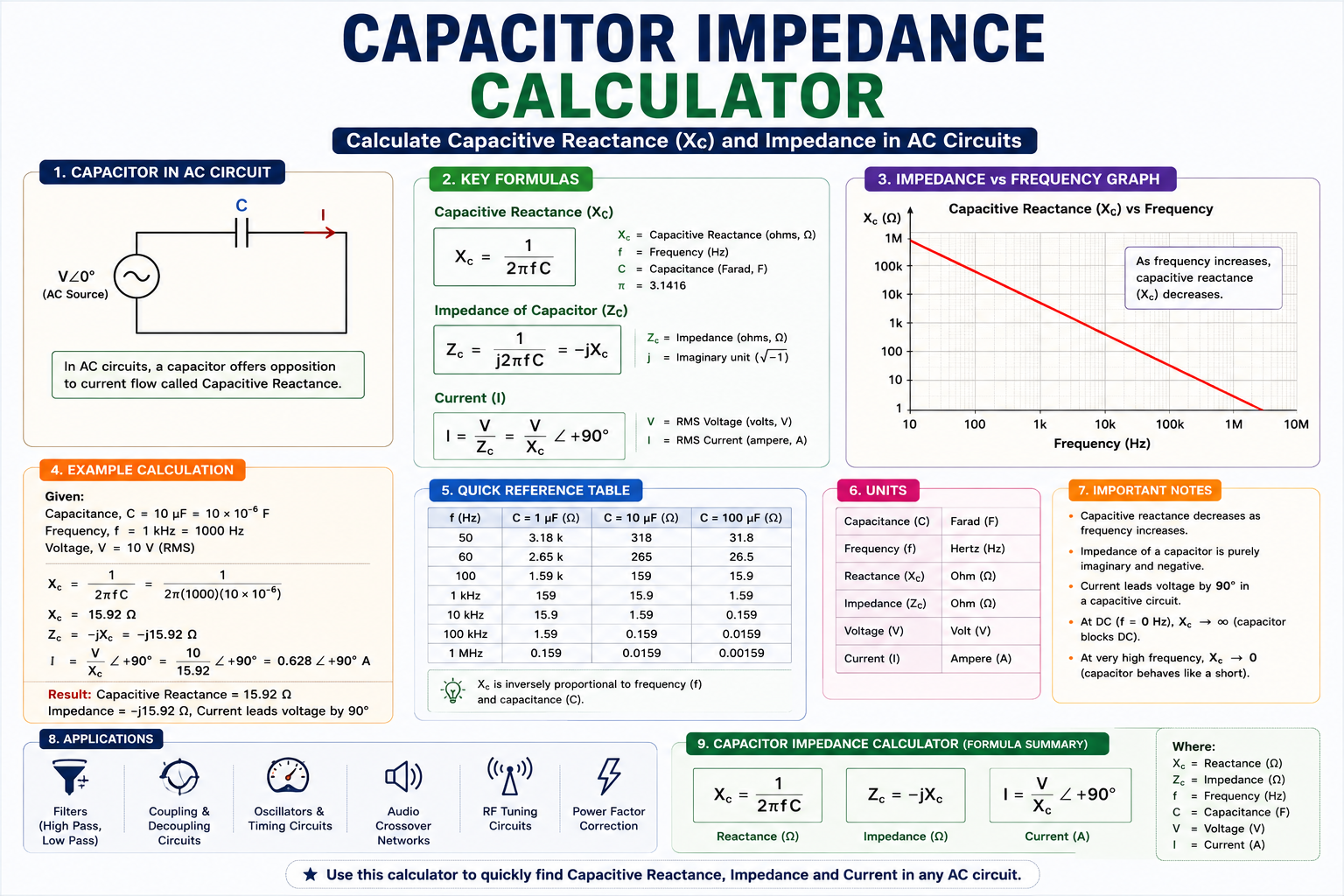

🔬 1. Introduction to Capacitor AC Impedance
In alternating current (AC) circuit design, impedance (Z) defines the total vector opposition a real-world component presents to sinusoidal current flow. While static DC circuits are easily solved using our Ohm's Law Calculator or analyzed for resistive drop with our LED Resistor Calculator, AC networks introduce frequency-dependent reactive interactions that vary dynamically across the frequency spectrum.
When biasing high-speed analog frontends, understanding capacitor impedance is critical to preventing high-frequency noise spikes from riding on DC power rails. In active filtering circuits, engineers verify gain response using our FET Buffer Amplifier Calculator alongside our Inverting Op-Amp Resistor Calculator. This ensures clean signal conditioning without high-frequency feedback ringing.
Power supply decoupling networks rely on predictable capacitor impedance profiles to shunt switching transients to ground before they reset sensitive digital ICs. Designers evaluate power supply capacity using our Battery Runtime Calculator and stabilize voltage output using our Adjustable Voltage Regulator Calculator. Controlled power rail impedance prevents unexpected microcontroller brownouts.
⚙️ 2. Ideal Capacitive Reactance (Xc) Derivation
In an ideal capacitor, impedance consists entirely of pure Capacitive Reactance (X_C). Because a capacitor blocks static DC current (0 Hz, infinite reactance) while passing high-frequency AC signals easily, reactance drops continuously as signal frequency rises.
Selecting proper wire gauges and PCB trace dimensions prevents unwanted lead resistance from artificially elevating low-impedance ground paths. Engineers calculate conductor cross-sections using our Wire Size Calculator and evaluate line drop using our Electrical Wire & Cable Voltage Drop Calculator.
📐 3. Real-World Model: ESR and ESL Parasitics
A physical capacitor is not purely capacitive. Real-world components include internal parasitic elements modeled as a series R-L-C circuit:
Equivalent Series Resistance (ESR) represents physical lead, foil, and dielectric energy losses, while Equivalent Series Inductance (ESL) arises from internal lead geometries.
📊 4. Self-Resonant Frequency (SRF) Characteristics Chart
The interaction between capacitive reactance (X_C) and parasitic inductive reactance (X_L) creates three distinct operating zones:
| Frequency Region |
Dominant Parasitic Element |
Impedance Trend |
Circuit Behavior |
| Below SRF (f < f_s) |
Capacitive Reactance (X_C) |
Impedance decreases as frequency rises |
Behaves as a pure capacitor (Current leads voltage) |
| At SRF (f = f_s) |
Resistive Loss (ESR) |
Impedance reaches minimum point (Z = ESR) |
Purely resistive resonance (Voltage and current in phase) |
| Above SRF (f > f_s) |
Inductive Reactance (X_L) |
Impedance increases as frequency rises |
Behaves as an inductor (Voltage leads current) |
⚡ 5. Total Vector Impedance Formula (Z)
Calculating high-frequency AC impedance requires vector addition because capacitive reactance (-jX_C) and inductive reactance (+jX_L) operate 180 degrees out of phase along the imaginary axis, while ESR sits along the real axis.
Engineers evaluate thermal power dissipation during high-ripple AC operation using our Heat Sink Thermal Resistance Calculator and decode package markings using our Ceramic Capacitor Code Calculator.
⚡ High-Frequency Decoupling Warning: Operating a capacitor above its Self-Resonant Frequency causes it to act like an inductor! A 10 µF electrolytic capacitor with an SRF of 2 MHz is completely useless for filtering 100 MHz clock noise on high-speed digital boards.
🔌 6. Current Phase Lead Angle (90-Degree Shift)
In an ideal capacitive circuit, current leads voltage by exactly 90 degrees because voltage cannot change instantaneously across an electric field:
✏️ 7. Impedance V-Curve & AC Plate Circuit Diagram
Below is a two-part engineering plot showing the classic V-shaped capacitor impedance curve across frequency (top) alongside an AC source driving a 3D capacitor structure (bottom):
📝 8. Step-by-Step Practical Design Calculation
Goal: Calculate total AC impedance (Z) for a 100 nF ceramic capacitor with ESR = 0.05 Ω and ESL = 1.5 nH operating at f = 1 MHz.
- Step 1: Calculate Capacitive Reactance (X_C)
X_C = 1 / (2 × π × 10⁶ × 100×10⁻⁹) = 1.5915 Ω
- Step 2: Calculate Inductive Reactance (X_L)
X_L = 2 × π × 10⁶ × 1.5×10⁻⁹ = 0.0094 Ω
- Step 3: Calculate Total Impedance (Z)
Net Reactance = 1.5915 - 0.0094 = 1.5821 Ω.
Z = Square Root of [ (0.05)² + (1.5821)² ] = 1.5829 Ω (Dominated by X_C).
💻 9. Broadband Power Decoupling Network Design
In high-speed FPGA and MCU power distribution networks (PDN), placing capacitors of different values in parallel creates a wide low-impedance valley across frequencies. Check board headers using our Arduino Board Pinout and our Raspberry Pi Pinout to place bypass capacitors close to supply pins.
Low-Frequency Decoupling (10 µF)
Handles low-frequency load transients from 10 kHz to 1 MHz before reaching its self-resonant frequency.
High-Frequency Decoupling (100 nF)
Smaller package size lowers ESL, pushing SRF up to 15-30 MHz to shunt clock harmonic noise spikes.
🌡️ 10. Thermal Heating & High-Frequency Loss Factors
High-frequency switching ripple current passing through capacitor ESR generates internal thermal power dissipation (P = I_rms² × ESR). Designers analyze PCB trace impedance using our Microstrip Impedance Calculator and verify line resistance with our PCB Trace Resistance Calculator.
💡 Ripple Current Thermal Rule: Never exceed a capacitor's maximum rated AC ripple current specification. Excessive thermal dissipation degrades electrolyte fluid in electrolytic capacitors, increasing ESR exponentially over time in a thermal runaway loop.
❓ 11. Frequently Asked Questions (10 Detailed Answers)
1. What is capacitor impedance (Z)? +
Impedance is the total vector opposition a capacitor presents to AC current, combining capacitive reactance (X_C), ESR, and ESL.
2. What is the capacitive reactance formula? +
Ideal capacitive reactance is X_C = 1 / (2 × π × f × C), where f is frequency and C is capacitance.
3. How is real-world capacitor impedance calculated? +
Total impedance is calculated as Z = Square Root of [ ESR² + (X_C - X_L)² ].
4. What is Self-Resonant Frequency (SRF)? +
SRF is the frequency where capacitive reactance equals inductive reactance (X_C = X_L), causing total impedance to hit its minimum point equal to ESR.
5. What happens above the Self-Resonant Frequency? +
Above SRF, lead inductance (ESL) dominates, causing the component to behave like an inductor whose impedance rises with frequency.
6. How does current phase angle relate to voltage? +
In an ideal capacitor, AC current leads voltage by exactly 90 degrees (90° phase lead).
7. Why is low ESR critical in power decoupling? +
Low ESR minimizes heat dissipation and provides a low-impedance ground path to shunt noise transients away from ICs.
8. How does temperature affect capacitor ESR? +
Cold temperatures increase electrolyte viscosity in electrolytics, elevating ESR significantly at low temperatures.
9. Why place different capacitor values in parallel? +
Paralleling large (10 µF) and small (100 nF) capacitors covers a wider frequency band with low impedance.
10. What is the difference between DC resistance and AC impedance? +
DC resistance opposes static current continuously. AC impedance varies dynamically with signal frequency due to electric and magnetic fields.
