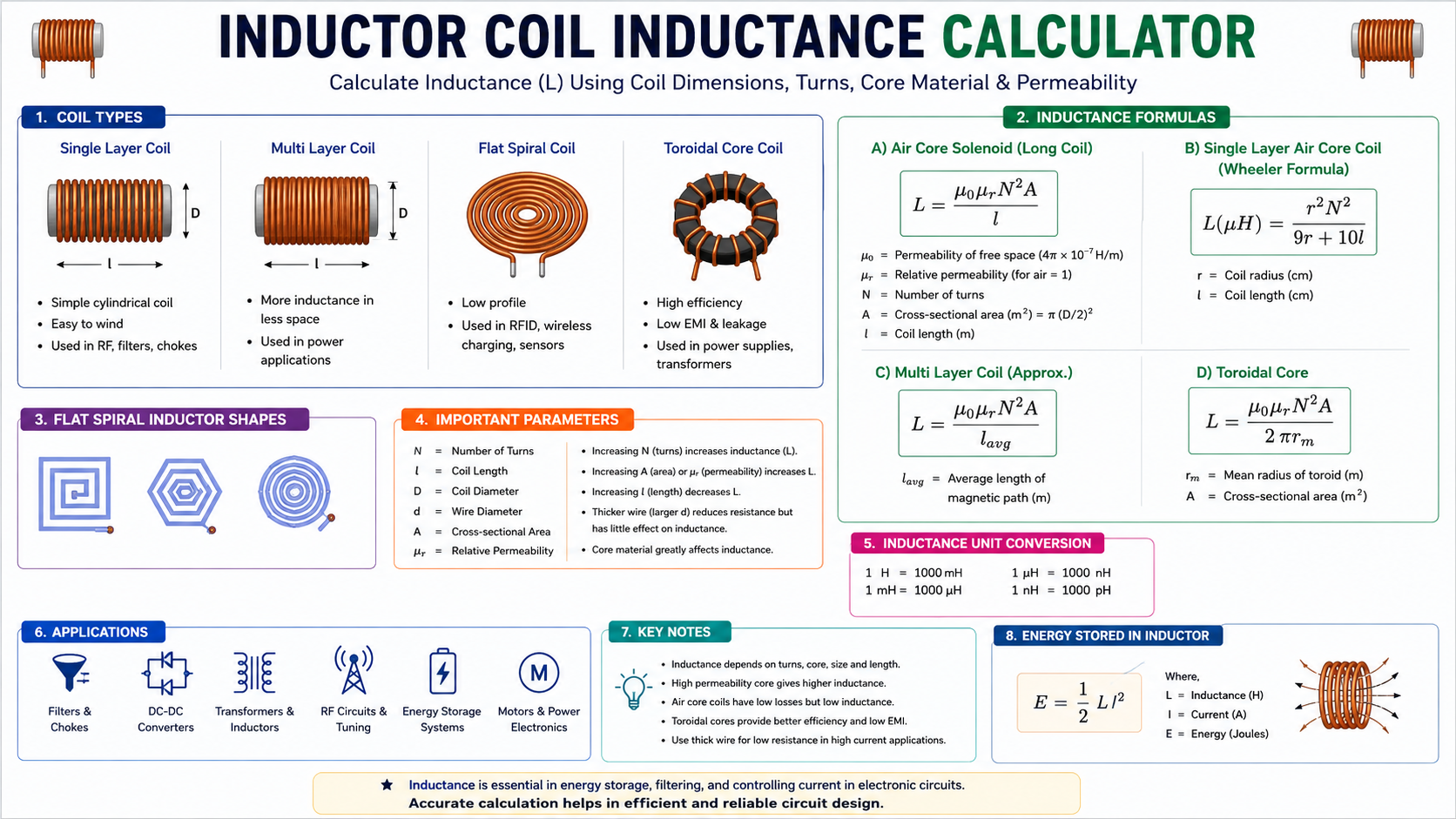

🔬 1. Introduction to Inductive Energy Storage
Inductance (L) represents the passive property of an electrical conductor to oppose changes in current flow by storing energy within a concentrated magnetic field. While static resistive circuits are solved using our Ohm's Law Calculator or analyzed for load current with our LED Resistor Calculator, inductive components convert moving electrical charge directly into electromagnetic flux lines.
In dynamic switching power supplies, inductor coils filter high-frequency switching ripple before it reaches sensitive load chips. When configuring active switching regulators or buffer amplifiers, engineers analyze gain and feedback networks using our FET Buffer Amplifier Calculator alongside our Inverting Op-Amp Resistor Calculator. This prevents voltage overshoot during sudden load transients.
Energy storage efficiency in switched-mode buck and boost converters depends directly on inductor core selection and turn density. Designers evaluate battery runtime curves using our Battery Runtime Calculator and regulate output voltages using our Adjustable Voltage Regulator Calculator. Properly designed coils minimize thermal hysteresis loss under continuous power supply duty cycles.
⚙️ 2. Magnetic Permeability & Core Material Physics
An inductor coil consists of conductive wire turns wound around an air gap or a ferromagnetic core (such as ferrite or iron powder). The core material's relative magnetic permeability (μ_r) concentrates flux lines, multiplying total coil inductance compared to an air-core equivalent.
Selecting heavy wire gauges prevents DC winding resistance (DCR) from causing excessive thermal I²R heating. Engineers calculate wire cross-sections using our Wire Size Calculator and verify line losses using our Electrical Wire & Cable Voltage Drop Calculator.
📐 3. Solenoid & Wheeler's Inductance Formulas
The ideal theoretical inductance for a long single-layer solenoid coil is calculated using core area and turn count:
For single-layer air-core cylindrical coils, Wheeler's empirical formula offers high real-world accuracy in inches:
📊 4. Coil Geometry Comparison Table
Different coil winding geometries provide distinct trade-offs between physical size, magnetic flux containment, and manufacturing cost:
| Coil Geometry Type |
Relative Permeability (μ_r) |
Magnetic Field Containment |
Primary Engineering Usage |
| Air-Core Solenoid |
1.0 (Constant) |
Unshielded (Radiation loss) |
High-frequency RF transmitters, audio crossovers |
| Ferrite Rod / Bobbin |
100 - 3,000 |
Semi-shielded open flux |
AM radio antennas, power chokes |
| Toroidal Ferrite Ring |
500 - 10,000 |
100% Closed circular loop |
EMI line filters, high-efficiency SMPS transformers |
| PCB Planar Spiral |
1.0 (PCB substrate) |
Unshielded planar field |
NFC antennas, wireless charging pads, RF ICs |
⚡ 5. Stored Magnetic Energy & Saturation Factors
An inductor coil stores energy in its magnetic field (E = 0.5 × L × I²). When operating ferromagnetic cores under heavy DC bias current, magnetic flux density (B) can exceed the core's saturation limit (B_sat), causing inductance to drop precipitously.
Engineers evaluate thermal power dissipation during high-current operation using our Heat Sink Thermal Resistance Calculator and decode package markings using our Ceramic Capacitor Code Calculator.
⚡ Core Saturation Risk: When a power inductor saturates, its inductance drops by up to 90%. The coil loses its current-limiting reactance and acts like a plain piece of wire, causing massive current spikes that can instantly destroy switching MOSFETs!
🔌 6. Skin Effect & High-Frequency AC Losses
At high frequencies, AC current concentrates near the outer skin of copper wire, reducing effective conductor cross-section and elevating AC resistance:
✏️ 7. Multi-Layer & PCB Spiral Inductor Geometries
Below is a multi-part engineering diagram illustrating multi-coil vs single-coil turns (top) alongside square, hexagonal, octagonal, and circular PCB planar spiral inductor geometries (bottom):
📝 8. Step-by-Step Practical Design Example
Goal: Calculate inductance for an air-core solenoid coil with N = 30 turns, diameter d = 0.5 inches, and length l = 1.0 inch using Wheeler's formula.
- Step 1: Calculate Numerator (d² × N²)
d² = (0.5)² = 0.25 | N² = (30)² = 900 | Numerator = 0.25 × 900 = 225
- Step 2: Calculate Denominator (18d + 40l)
18d = 18 × 0.5 = 9.0 | 40l = 40 × 1.0 = 40.0 | Denominator = 9 + 40 = 49.0
- Step 3: Calculate Total Inductance (L)
L = 225 / 49.0 = 4.59 Microhenries (4.59 μH).
💻 9. Switched-Mode Power Supply Filter Design
In buck and boost switching regulators, output chokes store energy during switch ON-time and deliver current to the load during OFF-time. Engineers verify microcontroller pinout drive capability using our Arduino Board Pinout and our Raspberry Pi Pinout when driving PWM switching MOSFETs.
Continuous Conduction Mode (CCM)
Inductor ripple current remains above zero at all times, minimizing peak current stress on switching transistors and output filtering capacitors.
Discontinuous Conduction Mode (DCM)
Inductor current falls to zero during each switching period, requiring larger peak current ratings but enabling smaller physical core sizes.
🌡️ 10. Inter-Turn Parasitic Capacitance & SRF
Adjacent copper wire turns in a coil act as tiny parallel plates, creating inter-turn parasitic capacitance (C_p). Hardware designers analyze high-frequency trace impedance using our Microstrip Impedance Calculator and verify line resistance with our PCB Trace Resistance Calculator.
💡 Self-Resonant Frequency (SRF): Parasitic winding capacitance forms a parallel resonant LC tank circuit with coil inductance. Above the SRF (f_s = 1 / (2π√LC_p)), an inductor stops behaving as an inductor and acts like a capacitor!
❓ 11. Frequently Asked Questions (10 Detailed Answers)
1. What is an inductor coil? +
An inductor coil is a passive component that stores energy within a concentrated magnetic field created by current flowing through wire turns.
2. What is the fundamental solenoid inductance formula? +
The core formula is L = (N² × μ × A) / l, where N is turns, μ is core permeability, A is area, and l is coil length.
3. What is Wheeler's single-layer formula? +
In inches, Wheeler's formula is L (μH) = (d² × N²) / (18d + 40l), where d is diameter, l is length, and N is turn count.
4. How does doubling turn count affect inductance? +
Inductance scales quadratically with turns (L ∝ N²). Doubling wire turns quadruples (4x) the overall inductance.
5. What is the difference between air-core and ferrite-core inductors? +
Air cores have constant permeability (μ_r = 1) without saturation. Ferrite cores provide high permeability (μ_r = 100-10,000), increasing inductance per turn drastically.
6. How are PCB planar flat spiral inductors used? +
Planar spiral inductors etch square, hexagonal, octagonal, or circular copper traces directly on PCB layers for compact RF and wireless power coils.
7. What is skin effect in inductor wire windings? +
At high frequencies, AC current concentrates near the wire's outer surface, increasing AC resistance and lowering coil quality factor (Q).
8. What causes self-resonance in an inductor coil? +
Parasitic inter-turn capacitance (C_p) between adjacent wire turns combines with coil inductance (L) to form a parallel resonant circuit.
9. How much energy is stored in a charged magnetic field? +
Magnetic energy (E, in Joules) is calculated using E = 0.5 × L × I², where L is in Henries and I is in Amperes.
10. What is magnetic core saturation? +
Core saturation occurs when magnetic flux density hits its physical limit in a ferromagnetic core, causing inductance to drop sharply under heavy current.
