🔬 1. Introduction to Planar Microstrip Patch Antennas
Microstrip patch antennas are low-profile, lightweight planar radiatory structures widely integrated into Wi-Fi routers, 5G smartphones, GPS receivers, and aerospace telemetry systems. While static DC supply rails are calculated using our Ohm's Law Calculator or analyzed for indicator currents with our LED Resistor Calculator, planar patch elements radiate microwave energy directly from printed copper traces.
In high-frequency RF frontends, matching microstrip feedlines to the antenna input node eliminates power reflections. When designing active RF transceiver frontends or low-noise block amplifiers, engineers analyze gain and feedback stability using our FET Buffer Amplifier Calculator alongside our Inverting Op-Amp Resistor Calculator.
Wireless sensor nodes operating on battery power require high-efficiency antenna radiators to extend field operating lifespan. Designers evaluate battery depletion rates using our Battery Runtime Calculator and regulate RF power rails using our Adjustable Voltage Regulator Calculator. Precise dimensional calculation ensures optimal impedance matching at the target resonant frequency.
⚙️ 2. Dielectric Substrate Selection (FR-4 vs Rogers)
A microstrip patch antenna consists of a rectangular metallic patch etched on top of a dielectric substrate of thickness (h) supported by a continuous ground plane underneath.
Selecting low-loss feedline wire gauges or copper trace widths prevents resistive attenuation before RF energy reaches the patch radiator. Engineers calculate conductor sizing using our Wire Size Calculator and verify line drop using our Electrical Wire & Cable Voltage Drop Calculator.
📐 3. Patch Width (W) & Length (L) Calculation Formulas
Patch width (W) is calculated to ensure high radiation efficiency while avoiding excitation of higher-order modes:
Physical patch length (L) controls the fundamental TM10 resonant frequency and must account for fringing electric field extensions (ΔL):
📊 4. Common Wireless Bands Patch Dimensions Table
The table below provides physical patch dimensions (W × L) for popular wireless frequencies fabricated on standard 1.6 mm FR-4 substrate (εr = 4.4):
| Wireless Frequency Band |
Substrate Type & Height (h) |
Effective Permittivity (ε_eff) |
Patch Width W (mm) |
Patch Length L (mm) |
| 915 MHz (GSM / ISM / LoRa) |
FR-4 (1.6 mm, εr = 4.4) |
ε_eff ≈ 4.12 |
100.1 mm |
76.4 mm |
| 1.575 GHz (GPS L1 Band) |
FR-4 (1.6 mm, εr = 4.4) |
ε_eff ≈ 4.08 |
58.2 mm |
44.1 mm |
| 2.450 GHz (Wi-Fi 4 / Bluetooth) |
FR-4 (1.6 mm, εr = 4.4) |
ε_eff ≈ 4.02 |
38.0 mm |
28.8 mm |
| 3.500 GHz (5G NR Sub-6 GHz) |
Rogers RO4003C (0.8 mm, εr = 3.38) |
ε_eff ≈ 3.15 |
29.1 mm |
23.5 mm |
| 5.800 GHz (Wi-Fi 5 / 6 Band) |
Rogers RO4003C (0.8 mm, εr = 3.38) |
ε_eff ≈ 3.11 |
17.5 mm |
14.0 mm |
⚡ 5. Effective Permittivity (ε_eff) & Fringing Extension (ΔL)
Because electric field lines extend into both the PCB substrate and air space above the patch, the effective dielectric constant (ε_eff) is lower than the substrate relative permittivity (εr).
Engineers evaluate thermal power dissipation during high-power transmission using our Heat Sink Thermal Resistance Calculator and decode package markings using our SMD Resistor Code Calculator.
⚡ Fringing Field Effect: Neglecting the edge fringing length extension (ΔL) in patch calculations causes the fabricated antenna to resonate 3% to 7% lower than the intended center frequency!
🔌 6. Inset Microstrip Feed Impedance Matching (50 Ω)
The input impedance at the edge of a radiating patch is high (200 Ω to 300 Ω). Notch insetting the 50 Ω microstrip feedline into the patch by distance (y0) matches the feeder line directly without external matching components.

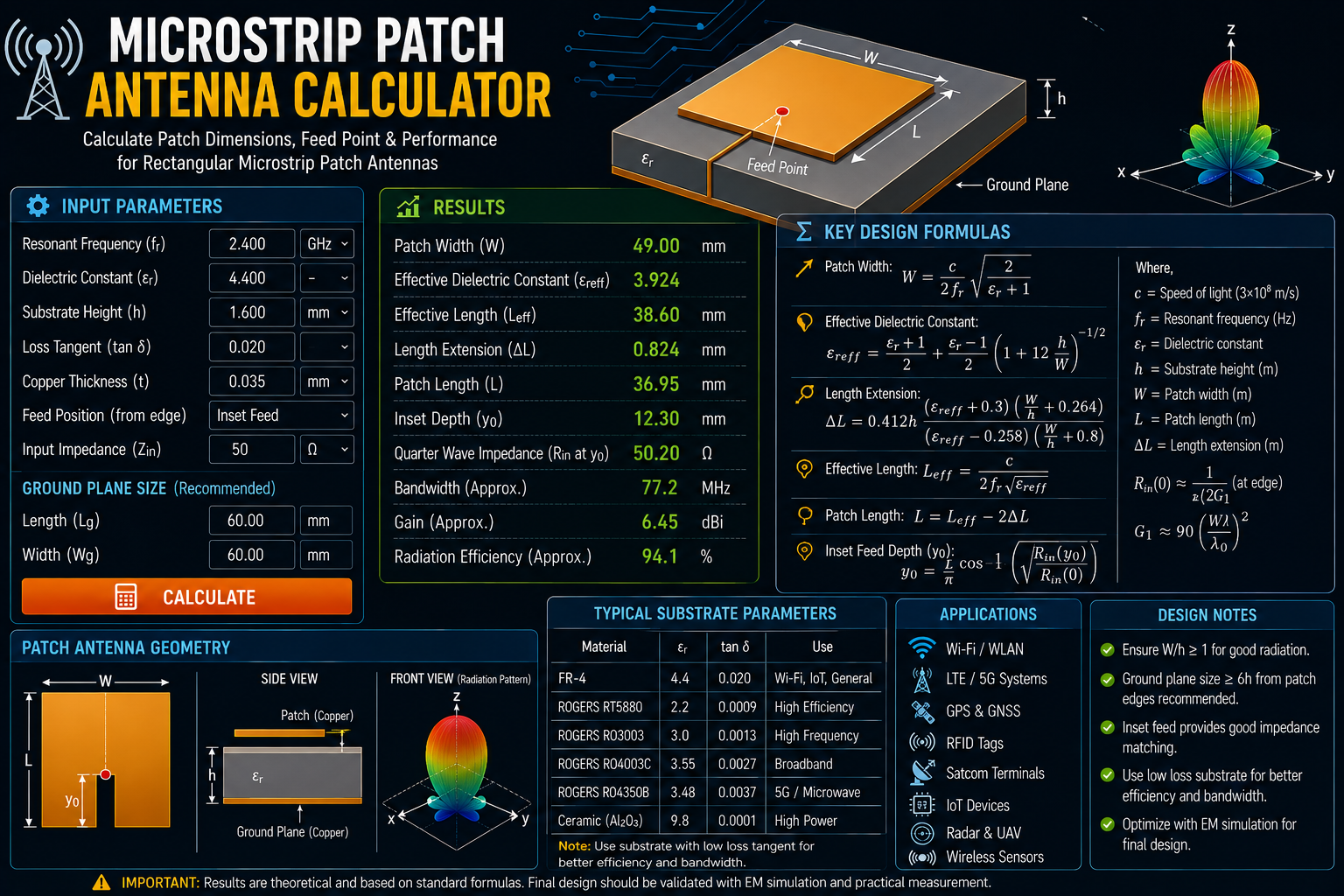

✏️ 7. 3D Patch Antenna Geometry Schematic Diagram
Below is a 3D structural diagram illustrating a rectangular microstrip patch antenna with patch width W, patch length L, substrate height h, dielectric permittivity εr, microstrip feedline, and bottom ground plane:
📝 8. Step-by-Step Practical Design Example (2.45 GHz Wi-Fi)
Goal: Calculate patch dimensions W and L for a 2.45 GHz Wi-Fi antenna on standard FR-4 substrate (εr = 4.4, h = 1.6 mm).
- Step 1: Calculate Patch Width (W)
W = [ 3×10⁸ / (2 × 2.45×10⁹) ] × √[ 2 / (4.4 + 1) ] = 0.06122 × 0.6086 = 38.0 mm
- Step 2: Calculate Effective Permittivity (ε_eff) & Fringing (ΔL)
ε_eff = 4.02 | ΔL = 0.738 mm
- Step 3: Calculate Physical Length (L)
L_eff = 3×10⁸ / [ 2 × 2.45×10⁹ × √4.02 ] = 30.52 mm
L = 30.52 mm - (2 × 0.738 mm) = 29.04 mm.
💻 9. Broadside Radiation Pattern & Gain Performance
A rectangular microstrip patch antenna radiates broadside energy perpendicular to the PCB plane with typical directivity gain of 5 dBi to 8 dBi. Engineers review hardware pinouts using our Arduino Board Pinout and our Raspberry Pi Pinout when driving PCB antenna modules.
E-Plane & H-Phase Beamwidth
Standard fundamental mode (TM10) patch antennas offer broad 3dB half-power beamwidths of approximately 65° to 80° in both principal radiation planes.
Patch Array High Gain
Combining multiple microstrip patches into a 2x2 or 4x4 corporate-fed antenna array narrows the beamwidth, boosting gain to 12-16 dBi for radar applications.
🌡️ 10. Surface Wave Losses & Substrate Thickness (h)
Increasing dielectric substrate thickness (h) widens antenna bandwidth but triggers parasitic surface waves guided along the dielectric-air boundary. Designers analyze microstrip trace impedance using our Microstrip Impedance Calculator and verify line resistance with our PCB Trace Resistance Calculator.
💡 Substrate Selection Rule: Select substrate thickness such that h < 0.03 λ0. For 2.45 GHz (λ0 = 122 mm), 1.6 mm FR-4 (h = 0.013 λ0) maintains high efficiency without excessive surface wave degradation!
❓ 11. Frequently Asked Questions (10 Detailed Answers)
1. What is a microstrip patch antenna? +
A microstrip patch antenna is a compact planar antenna etched on a PCB, consisting of a radiating patch, dielectric substrate, and bottom ground plane.
2. How is patch width (W) calculated? +
Patch width is W = (c / 2f0) × Square Root of [ 2 / (εr + 1) ], balancing efficiency and higher-order mode suppression.
3. Why is effective permittivity (ε_eff) lower than substrate permittivity (εr)? +
Fringing electric field lines extend into both the substrate and air above the patch, causing ε_eff to lie between 1 and εr.
4. How does fringing length extension (ΔL) affect patch length? +
Fringing fields make the patch look electrically longer. Physical length must be shortened by 2 × ΔL (L = L_eff - 2ΔL) to achieve resonance.
5. What is the effective patch length formula? +
Effective length represents half a wavelength in dielectric: L_eff = c / (2 × f0 × √ε_eff).
6. What feeding methods are used for microstrip patches? +
Common feeds include inset microstrip line feed, coaxial probe feed, aperture coupling, and proximity coupling.
7. Why is inset notch feeding used? +
The patch edge has high impedance (200-300 Ω). Insetting the feedline into the patch matches the 50 Ω point directly without external transformers.
8. How does substrate thickness affect patch performance? +
Thicker substrates increase bandwidth and gain efficiency but raise surface wave losses. Thinner substrates narrow operating bandwidth.
9. What radiation pattern does a TM10 patch antenna produce? +
A TM10 mode patch produces a broad directional broadside beam perpendicular to the PCB with 5 dBi to 8 dBi typical gain.
10. What PCB materials are preferred for patch antennas? +
FR-4 (εr = 4.4) is used for low-cost sub-6 GHz antennas, while Rogers PTFE laminates (e.g., RO4003C εr = 3.38) are preferred for high-frequency radar and 5G.
