🔬 1. Introduction to Voltage Division
Voltage divider networks represent one of the most essential building blocks in electronic circuit design, enabling engineers to scale high voltage levels down to precise, measurable fractions. Whether you are performing basic DC circuit analysis with our Ohm's Law Calculator or sizing current-limiting components using our LED Resistor Calculator, understanding voltage division is fundamental to designing safe hardware interfaces across embedded systems.
In active analog signal processing, voltage dividers serve as bias networks for transistor stages and active amplifier configurations. When configuring operational amplifier feedback loops, engineers match gain stages using our FET Buffer Amplifier Calculator alongside our Inverting Op-Amp Resistor Calculator. This ensures that reference voltages supplied to non-inverting inputs remain perfectly stable under varying thermal conditions.
Power supply management architecture also relies heavily on voltage division to monitor power rails and regulate battery discharge curves. Designers evaluate energy capacity using our Battery Runtime Calculator and optimize output rails using our Adjustable Voltage Regulator Calculator. These voltage feedback loops allow microcontrollers to read analog supply levels safely without damaging sensitive internal circuitry.
⚙️ 2. How Resistor Voltage Dividers Work
A standard resistor voltage divider consists of two passive resistors connected in series across an input DC voltage source (Vin). The divided output potential (Vout) is extracted from the central junction node situated between R1 and R2 with respect to the common circuit ground. Because both components share a single continuous series loop, current flows equally through both elements according to fundamental Kirchhoff laws.
Selecting appropriate physical wire gauges and trace capacities prevents unwanted resistive drops along long power delivery paths. Engineers calculate conductor sizing using our Wire Size Calculator and verify line losses using our Electrical Wire & Cable Voltage Drop Calculator. This ensures that the voltage reaching the input node of your divider matches your expected rail potential exactly.
📐 3. Mathematical Formula & Derivation
Applying Ohm's Law (I = Vin / (R1 + R2)) to the series loop yields the classic unloaded voltage divider equation:
When designing a divider to match a specific output target from a known input supply, calculate the top resistor (R1) value using the rearranged formula below:
📊 4. Unloaded vs Loaded Voltage Dividers
The ideal voltage divider equation assumes zero current is drawn from the output node Vout. When a real-world load resistance (Rload) is attached to Vout, it forms a parallel resistance with R2, effectively reducing the bottom branch resistance and causing output voltage sag.
| Divider Condition |
Effective Bottom Resistance |
Output Voltage Accuracy |
Best Practical Application |
| Unloaded Divider |
R2_eff = R2 |
100% Exact to Formula |
High-impedance ADC inputs, Op-Amp inputs |
| Lightly Loaded (Rload > 10 × R2) |
R2_eff ≈ R2 (minor drop) |
90% - 98% Accuracy |
Microcontroller GPIO logic shifting |
| Heavily Loaded (Rload < R2) |
R2_eff drops significantly |
Severe voltage sag |
Not recommended (Use buck regulator instead) |
⚡ 5. Power Dissipation & Thermal Resistor Selection
Because current flows continuously through R1 and R2 to ground, a voltage divider dissipates steady-state thermal power (P = Vin² / (R1 + R2)). Selecting appropriate resistor power ratings prevents component burning and thermal PCB copper degradation over time.
Engineers calculate thermal dissipation limits using our Heat Sink Thermal Resistance Calculator and decode package power ratings using our SMD Resistor Code Calculator. Applying a 50% power de-rating factor ensures stable operation under elevated ambient temperatures.
⚡ Quiescent Efficiency Tradeoff: Using very small resistor values (e.g., 100 Ω) minimizes load voltage sags but wastes battery energy as heat. Using high resistor values (e.g., 100 kΩ) saves power but makes Vout sensitive to ADC leakage currents.
🔌 6. Capacitive & Inductive AC Voltage Dividers
For high-frequency AC signals, series capacitors replace resistors to divide signal amplitudes without continuous DC power dissipation:
✏️ 7. Circuit Schematics & Visual Diagrams

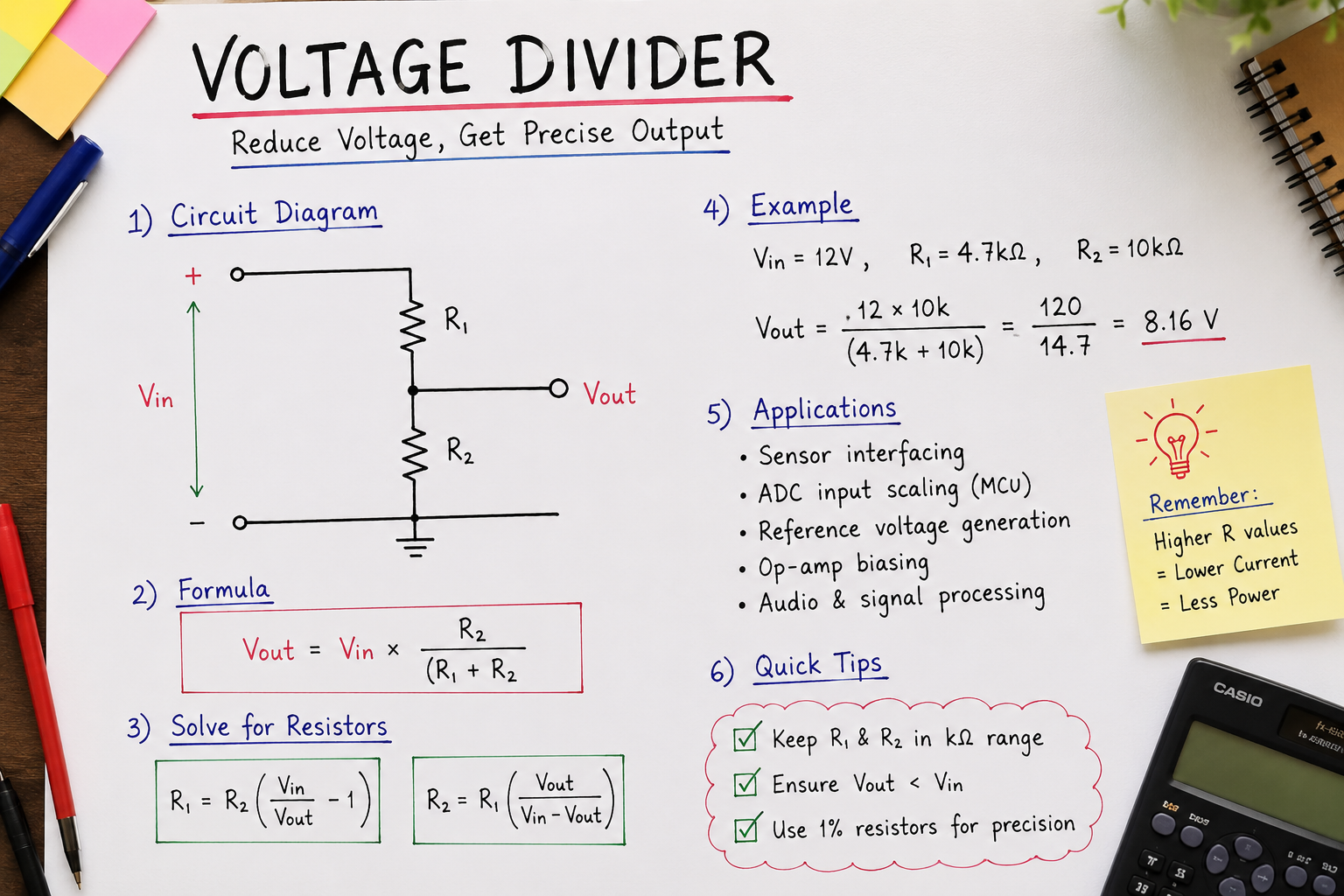

Below is a schematic diagram illustrating input supply Vin, series resistors R1 and R2, and the divided output node Vout:
📝 8. Step-by-Step Practical Design Example
Goal: Scale down a 12V automotive battery rail (Vin = 12V) to a safe 3.3V ADC input for an ESP32 microcontroller pin.
- Step 1: Select R2 Value
Choose a standard 10 kΩ resistor for R2 to balance low power loss with stable ADC sampling.
- Step 2: Calculate Exact R1
R1 = R2 × [ (Vin - Vout) / Vout ] = 10,000 × [ (12 - 3.3) / 3.3 ] = 26,363 Ω (26.36 kΩ)
- Step 3: Choose Standard E24 Resistor
Select the nearest standard E24 resistor value of 27 kΩ. Actual Vout = 12 × (10 / (27 + 10)) = 3.24V.
💻 9. Logic Level Shifting (5V to 3.3V GPIO Interfacing)
Connecting 5V sensor outputs to 3.3V microcontrollers (ESP32 or Raspberry Pi) requires scaling digital logic signals safely. Engineers review hardware pinouts using our Arduino Board Pinout and our Raspberry Pi Pinout to ensure correct pin drive current limits.
Standard Level Shifter Pair
R1 = 1.8 kΩ and R2 = 3.3 kΩ
Vout = 5V × (3.3 / (1.8 + 3.3)) = 3.235V (Ideal digital HIGH signal).
High-Speed Data Note
For high-speed SPI or UART data buses (>1 MHz), parasitic trace capacitance combined with high divider resistance slows rise times. Use active MOSFET level shifters for fast communications.
🌡️ 10. Op-Amp Buffer Isolation Techniques
High-frequency PCB traces connected to voltage dividers can suffer from parasitic coupling and impedance mismatches. Hardware designers calculate trace impedance using our Microstrip Impedance Calculator and verify line resistance with our PCB Trace Resistance Calculator.
💡 Unity-Gain Isolation: Placing a unity-gain operational amplifier (voltage follower) at Vout provides near-infinite input resistance to the divider, completely eliminating load voltage sags regardless of downstream load currents.
❓ 11. Frequently Asked Questions (10 Detailed Answers)
1. What is a voltage divider circuit? +
A voltage divider is a simple passive linear circuit that turns a higher input voltage into a lower output voltage using series components.
2. What is the standard voltage divider formula? +
The core formula is Vout = Vin × (R2 / (R1 + R2)).
3. Can a voltage divider power heavy electrical loads? +
No. Resistor dividers are inefficient for powering loads because connecting a load changes the effective resistance ratio and wastes energy as heat.
4. What happens when a load is attached to Vout? +
The load resistance forms a parallel combination with R2, lowering the effective bottom resistance and causing Vout to sag.
5. How do I select resistor values for a divider? +
Choose values low enough so quiescent current exceeds load current by at least 10 times, but high enough to prevent wasted power.
6. How is a voltage divider used for 5V to 3.3V level shifting? +
A divider scales 5V logic signals down to 3.3V for safe ESP32 or Pi GPIO inputs using standard resistor ratios like R1=1.8kΩ and R2=3.3kΩ.
7. Can potentiometers be used as variable dividers? +
Yes. A potentiometer's wiper terminal acts as Vout, splitting the resistive element into adjustable R1 and R2 legs.
8. What is a capacitive voltage divider? +
A capacitive divider uses series capacitors to scale down AC voltages without continuous DC power dissipation (Vout = Vin × (C1 / (C1+C2))).
9. How does temperature affect divider accuracy? +
If R1 and R2 have different Temperature Coefficients of Resistance (TCR), thermal shifts cause resistance values to drift unequally, altering Vout.
10. Why use an op-amp buffer with a voltage divider? +
An op-amp unity-gain buffer insulates the voltage divider from downstream load currents, keeping Vout completely stable.
